014L1154

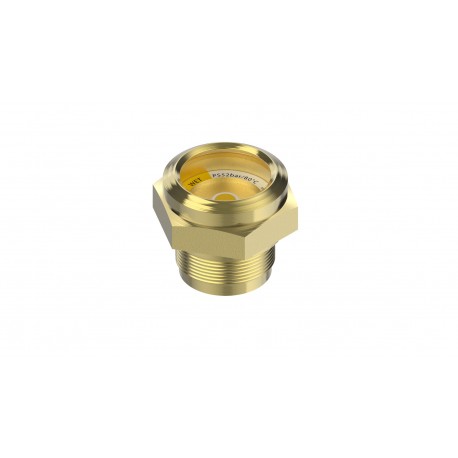

014L1154 DANFOSS REFRIGERATION Sight glass socket, SGP 24 RI
$0.00USD
4410 in stock
Key Specifications
EAN ():5702428819206
Type ():SGP 24 RI
Volume ():0.083 Liter
Approval ():C UL US LISTEDEAC
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428819206 |
| Type () | SGP 24 RI |
| Volume () | 0.083 Liter |
| Approval () | C UL US LISTEDEAC |
| Net weight () | 0.082 Kg |
| Serviceable () | No |
| Gross weight () | 0.086 Kg |
| Refrigerants () | R22 |
| Body material () | Brass |
| Product group () | Sight glasses |
| Packing format () | Multi pack |
| Parts included () | Gasket |
| Connection size () | M24 x 1 |
| Connection type () | M |
| SCIP dossier no. () | 323c7b85-ff73-43cd-8fce-a44eabbf5297 |
| Approval file name () | REF. LIQUID INDICATOR 76H4 |
| EU RoHS compliance () | Yes with exemptions |
| Moisture indicator () | I indicator |
| Connection material () | Brass |
| Product accessories () | Sight glass accessories |
| UL approval file name () | REF. LIQUID INDICATOR 76H4 |
| SGS saddle application () | M24 x 1 |
| Product Name Description () | Sight glass socket |
| UL approved refrigerants () | R22 |
| Green: max moist con@25 °C () | R22: 150 ppm |
| Green: max moist con@43 °C () | R22: 250 ppm |
| Max. Working Pressure [bar] () | 52 bar |
| Quantity per packing format () | 10 pc |
| Max. Working Pressure [psig] () | 754 psig |
| Yellow: min moist con@25 °C () | R22: 300 ppm |
| Yellow: min moist con@43 °C () | R22: 500 ppm |
| Temperature range [°C] [max] () | 80 °C |
| Temperature range [°C] [min] () | -50 °C |
| Temperature range [°F] [max] () | 175 °F |
| Temperature range [°F] [min] () | -58 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1)Cobalt dichloride (CAS no. 7646-79-9) |
| In scope of WEEE and contain batteries () | No |
Product Description
SGP 24 RI Sight Glass M/10x6
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Max. Working Pressure [bar]: 52.0, Moisture indicator: I indicator, Connection type: M, Connection size: M24 x 1
