014L0181

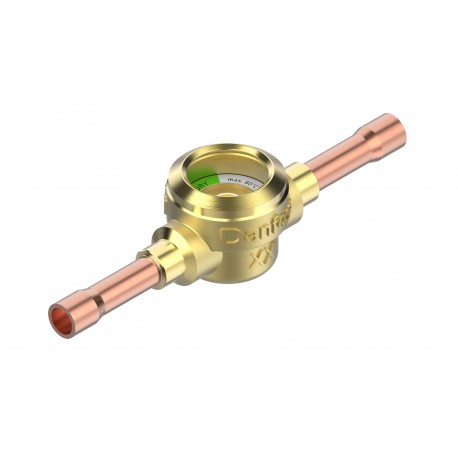

014L0181 DANFOSS REFRIGERATION Sight glass
$0.00USD
3644 in stock
Key Specifications
EAN ():5702428818599
Type ():SGP 6s N
Volume ():0.156 Liter
Approval ():C UL US LISTEDEAC
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428818599 |
| Type () | SGP 6s N |
| Volume () | 0.156 Liter |
| Approval () | C UL US LISTEDEAC |
| Net weight () | 0.089 Kilogram |
| Serviceable () | No |
| Gross weight () | 0.104 Kilogram |
| Refrigerants () | R1233zd(E)R1234yfR1234ze(E)R1270R134aR22R32R404AR407AR407CR407FR407HR410AR448AR449AR450AR452AR452BR454BR454CR455AR463AR507AR513AR515BR744 |
| UL evaluated () | Yes |
| Body material () | Brass |
| Product group () | Sight glasses |
| Packing format () | Multi pack |
| Inlet size [in] () | 1/4 in |
| Outlet size [in] () | 1/4 in |
| SCIP dossier no. () | 323c7b85-ff73-43cd-8fce-a44eabbf5297 |
| Identical product () | 014L0148 |
| Approval file name () | REF. LIQUID INDICATOR 76H4 |
| EU RoHS compliance () | Yes with exemptions |
| Moisture indicator () | N indicator |
| UK RoHS compliance () | Out of scope |
| Connection material () | Copper |
| Product accessories () | No |
| China RoHS compliance () | Yes exceed limitations |
| Inlet connection type () | Solder, ODF |
| Oil free refrigerants () | R1234ze(E)R134aR513AR515B |
| UL approval file name () | REF. LIQUID INDICATOR 76H4 |
| Outlet connection type () | Solder, ODF |
| EU RoHS exemption clause () | 6(c) |
| Lubricants compatibility () | Oilfree applications |
| Other RoHS documentation () | Saudi Arabia RoHS |
| Product Name Description () | Sight glass |
| UL approved refrigerants () | R1233zd(E)R134aR22R404AR407AR407CR407FR407HR410AR448AR449AR450AR452AR463AR507AR513AR515BR744 |
| Ignition source assessment () | Yes |
| Green: max moist con@25 °C () | R1234ze(E): 26 ppmR1270: 16 ppmR134a: 30 ppmR22: 30 ppmR32: 64 ppmR404A: 20 ppmR407A: 29 ppmR407C: 30 ppmR407F: 30 ppmR410A: 66 ppmR448A: 28 ppmR449A: 29 ppmR450A: 23 ppmR452A: 20 ppmR454B: 29 ppmR507A: 15 ppmR513A: 22 ppm |
| Green: max moist con@43 °C () | R1234ze(E): 28 ppmR1270: 29 ppmR134a: 45 ppmR22: 50 ppmR32: 116 ppmR404A: 25 ppmR407A: 48 ppmR407C: 60 ppmR407F: 60 ppmR410A: 135 ppmR448A: 70 ppmR449A: 53 ppmR450A: 46 ppmR452A: 30 ppmR454B: 58 ppmR507A: 30 ppmR513A: 22 ppm |
| Max. Working Pressure [bar] () | 52 bar |
| Quantity per packing format () | 25 pc |
| Max. Working Pressure [psig] () | 754 psig |
| Yellow: min moist con@25 °C () | R1234ze(E): 132 ppmR1270: 62 ppmR134a: 100 ppmR22: 120 ppmR32: 289 ppmR404A: 70 ppmR407A: 115 ppmR407C: 140 ppmR407F: 168 ppmR410A: 266 ppmR448A: 110 ppmR449A: 105 ppmR450A: 148 ppmR452A: 79 ppmR454B: 161 ppmR507A: 60 ppmR513A: 75 ppm |
| Yellow: min moist con@43 °C () | R1234ze(E): 165 ppmR1270: 115 ppmR134a: 170 ppmR22: 200 ppmR32: 459 ppmR404A: 100 ppmR407A: 192 ppmR407C: 225 ppmR407F: 240 ppmR410A: 540 ppmR448A: 227 ppmR449A: 200 ppmR450A: 245 ppmR452A: 143 ppmR454B: 250 ppmR507A: 110 ppmR513A: 123 ppm |
| Temperature range [°C] [max] () | 80 °C |
| Temperature range [°C] [min] () | -50 °C |
| Temperature range [°F] [max] () | 175 °F |
| Temperature range [°F] [min] () | -58 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1)Cobalt dichloride (CAS no. 7646-79-9) |
| In scope of WEEE and contain batteries () | No |
Product Description
SGP 6s N Sight Glass M/25x4
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF
