In Stock Hot Product
014L0086

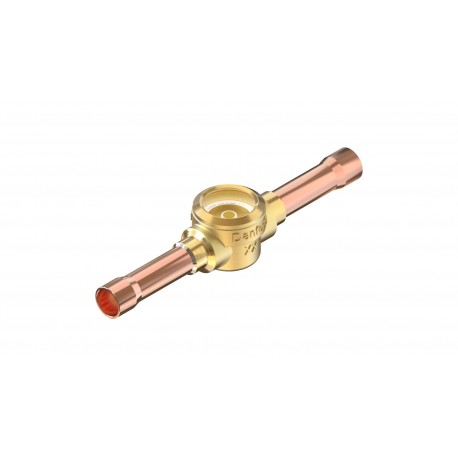

014L0086 DANFOSS REFRIGERATION Sight glass, SGP 12s X
$0.00USD
4914 in stock
Key Specifications
EAN ():5702428818735
Type ():SGP 12s X
Volume ():0.312 Liter
Approval ():C UL US LISTEDEAC
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428818735 |
| Type () | SGP 12s X |
| Volume () | 0.312 Liter |
| Approval () | C UL US LISTEDEAC |
| Net weight () | 0.165 Kg |
| Serviceable () | No |
| Gross weight () | 0.184 Kg |
| Refrigerants () | R1270R134aR22R290R32R404AR407AR407CR407FR410AR448AR449AR450AR452AR454BR513AR600R600aR1233zd(E)R1234yfR1234ze(E)R407HR452BR454CR455AR515BR744R463AR507A |
| Body material () | Brass |
| Product group () | Sight glasses |
| Packing format () | Multi pack |
| Inlet size [in] () | 1/2 in |
| Outlet size [in] () | 1/2 in |
| SCIP dossier no. () | 525e07d8-f4a6-4108-b8f8-36090550941f |
| Approval file name () | REF. LIQUID INDICATOR 76H4 |
| EU RoHS compliance () | Yes with exemptions |
| Moisture indicator () | No indicator |
| Connection material () | Copper |
| Product accessories () | No |
| Inlet connection type () | Solder, ODF |
| Oil free refrigerants () | R1234ze(E)R134aR513AR515B |
| UL approval file name () | REF. LIQUID INDICATOR 76H4 |
| Outlet connection type () | Solder, ODF |
| Lubricants compatibility () | Oilfree applications |
| Product Name Description () | Sight glass |
| UL approved refrigerants () | R1233zd(E)R134aR22R404AR407AR407CR407FR407HR410AR448AR449AR450AR452AR463AR507AR513AR515BR744 |
| Ignition source assessment () | Yes |
| Max. Working Pressure [bar] () | 52 bar |
| Quantity per packing format () | 28 pc |
| Max. Working Pressure [psig] () | 754 psig |
| Temperature range [°C] [max] () | 80 °C |
| Temperature range [°C] [min] () | -50 °C |
| Temperature range [°F] [max] () | 175 °F |
| Temperature range [°F] [min] () | -58 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
SGP 12s X Sight Glass M/28
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF
