014L0044

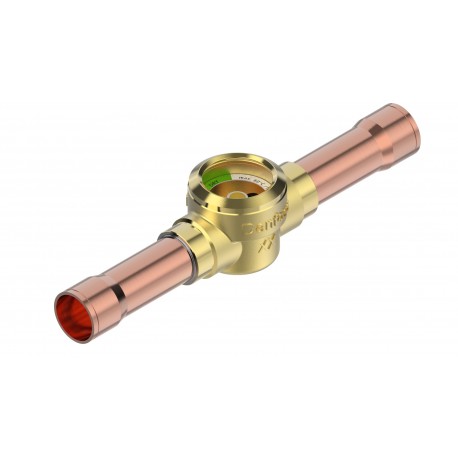

014L0044 DANFOSS REFRIGERATION Sight glass, SGP 16s I
$0.00USD
3948 in stock
Key Specifications
EAN ():5702428839037
Type ():SGP 16s I
Volume ():0.26 Liter
Approval ():C UL US LISTEDEAC
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428839037 |
| Type () | SGP 16s I |
| Volume () | 0.26 Liter |
| Approval () | C UL US LISTEDEAC |
| Net weight () | 0.186 Kg |
| Serviceable () | No |
| Gross weight () | 0.206 Kg |
| Refrigerants () | R22R290R600R600a |
| Body material () | Brass |
| Product group () | Sight glasses |
| Packing format () | Multi pack |
| Inlet size [in] () | 5/8 in |
| Inlet size [mm] () | 16 mm |
| Outlet size [in] () | 5/8 in |
| Outlet size [mm] () | 16 mm |
| SCIP dossier no. () | 323c7b85-ff73-43cd-8fce-a44eabbf5297 |
| Approval file name () | REF. LIQUID INDICATOR 76H4 |
| EU RoHS compliance () | Yes with exemptions |
| Moisture indicator () | I indicator |
| Connection material () | Copper |
| Product accessories () | No |
| Inlet connection type () | Solder, ODF |
| UL approval file name () | REF. LIQUID INDICATOR 76H4 |
| Outlet connection type () | Solder, ODF |
| Product Name Description () | Sight glass |
| UL approved refrigerants () | R22 |
| Ignition source assessment () | Yes |
| Green: max moist con@25 °C () | R22: 150 ppmR290: 25 ppmR600: 10 ppmR600a: 11 ppm |
| Green: max moist con@43 °C () | R22: 250 ppmR290: 50 ppmR600: 28 ppmR600a: 30 ppm |
| Max. Working Pressure [bar] () | 52 bar |
| Quantity per packing format () | 28 pc |
| Max. Working Pressure [psig] () | 754 psig |
| Yellow: min moist con@25 °C () | R22: 300 ppmR290: 50 ppmR600: 20 ppmR600a: 22 ppm |
| Yellow: min moist con@43 °C () | R290: 100 ppmR600: 55 ppmR600a: 60 ppmR22: 500 ppm |
| Temperature range [°C] [max] () | 80 °C |
| Temperature range [°C] [min] () | -50 °C |
| Temperature range [°F] [max] () | 175 °F |
| Temperature range [°F] [min] () | -58 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1)Cobalt dichloride (CAS no. 7646-79-9) |
| In scope of WEEE and contain batteries () | No |
Product Description
SGP 16s I Sight Glass M/28
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: Solder, ODF, Inlet size [mm]: 16.00, Outlet connection type: Solder, ODF, Outlet size [mm]: 16.00
