In Stock Hot Product
014G0279

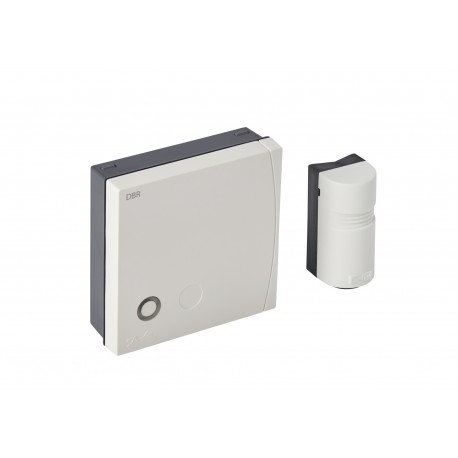

014G0279 DANFOSS HEATING Dynamic Boiler Relay
$0.00USD
4826 in stock
Key Specifications
EAN ():5702425145124
Type ():Boiler relay
Colour ():RAL 9016
Volume ():1.08 Liter
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702425145124 |
| Type () | Boiler relay |
| Colour () | RAL 9016 |
| Volume () | 1.08 Liter |
| Approval () | Z-WaveCE |
| Net weight () | 0.195 Kilogram |
| Width [mm] () | 30 mm |
| Application () | Residential (pollution degree 2) |
| Description () | Dynamic Boiler Relay for Danfoss Link |
| Height [mm] () | 84 mm |
| Length [mm] () | 84 mm |
| Adapter type () | N/A |
| CE evaluated () | Yes |
| EEE category () | 5 small equipment (any external dimension50 cm) |
| Gross weight () | 0.235 Kilogram |
| Product group () | Danfoss Link™ |
| Software class () | A |
| Regulation type () | On/Off |
| In scope of WEEE () | Yes |
| Pollution degree () | 2 |
| Approval standard () | CE marking |
| Wireless standard () | Z-wave |
| Resistive load [A] () | 3 A |
| System integration () | Danfoss Link™ |
| Thermostat IP Class () | 40 |
| Supply voltage [V] AC () | 230 V |
| Transmission [m] [Max] () | 30 m |
| Rated impulse voltage [kV] () | 2.5 kV |
| Transmission frequency [MHz] () | 868.42 MHz |
| Supply voltage frequency [Hz] () | 50 Hz |
| Transmission power [mW] [Max] () | 1 mW |
| Ambient temperature [°C] [max] () | 45 °C |
| Ambient temperature [°C] [min] () | 0 °C |
| Power consumption (standby) [W] () | 1.6 W |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Ball pressure test temperature [°C] () | 75 °C |
| In scope of WEEE and contain batteries () | No |
Product Description
Dynamic Boiler Relay for Danfoss Link, 868.42 MHz
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Dynamic Boiler Relay for Danfoss Link, Z-wave
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
