In Stock Hot Product
014-1124

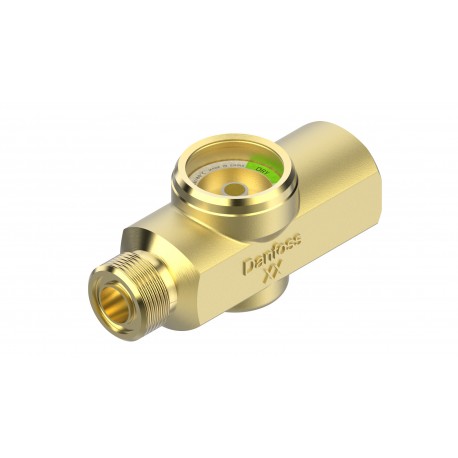

014-1124 DANFOSS REFRIGERATION Sight glass, SGN 12
$0.00USD
3898 in stock
Key Specifications
EAN ():5702428288934
Type ():SGN 12
Volume ():0.26 Liter
Net weight ():0.21 Kg
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428288934 |
| Type () | SGN 12 |
| Volume () | 0.26 Liter |
| Net weight () | 0.21 Kg |
| Serviceable () | No |
| Gross weight () | 0.4 Kg |
| Refrigerants () | R134aR22R404AR407AR407CR407FR448AR449AR450AR452AR513AR507A |
| Body material () | Brass |
| Product group () | Sight glasses |
| Packing format () | Industrial pack |
| Inlet size [in] () | 1/2 in |
| Outlet size [in] () | 1/2 in |
| EU RoHS compliance () | Yes with exemptions |
| Moisture indicator () | N indicator |
| Connection material () | Brass |
| Product accessories () | No |
| Inlet connection type () | Face seal |
| Oil free refrigerants () | R134aR513A |
| Outlet connection type () | Face seal |
| Inlet Internal/External () | Internal |
| Lubricants compatibility () | Oilfree applications |
| Outlet Internal/External () | External |
| Product Name Description () | Sight glass |
| Green: max moist con@25 °C () | R134a: 30 ppmR22: 30 ppmR404A: 20 ppmR407A: 29 ppmR407C: 30 ppmR407F: 30 ppmR448A: 28 ppmR449A: 29 ppmR450A: 23 ppmR452A: 20 ppmR513A: 22 ppmR507A: 15 ppm |
| Green: max moist con@43 °C () | R134a: 45 ppmR22: 50 ppmR404A: 25 ppmR407A: 48 ppmR407C: 60 ppmR407F: 60 ppmR448A: 70 ppmR449A: 53 ppmR450A: 46 ppmR452A: 30 ppmR513A: 22 ppmR507A: 30 ppm |
| Max. Working Pressure [bar] () | 35 bar |
| Quantity per packing format () | 24 pc |
| Max. Working Pressure [psig] () | 500 psig |
| Yellow: min moist con@25 °C () | R134a: 100 ppmR22: 120 ppmR404A: 70 ppmR407A: 115 ppmR407C: 140 ppmR448A: 110 ppmR449A: 105 ppmR450A: 148 ppmR452A: 79 ppmR513A: 75 ppmR407F: 168 ppmR507A: 60 ppm |
| Yellow: min moist con@43 °C () | R134a: 170 ppmR404A: 100 ppmR407C: 225 ppmR507A: 110 ppmR22: 200 ppmR407A: 192 ppmR407F: 240 ppmR448A: 227 ppmR449A: 200 ppmR450A: 245 ppmR452A: 143 ppmR513A: 123 ppm |
| Temperature range [°C] [max] () | 80 °C |
| Temperature range [°C] [min] () | -50 °C |
| Temperature range [°F] [max] () | 175 °F |
| Temperature range [°F] [min] () | -58 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
SGN 12, Sight glass, Face Seal, Face Seal
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: Face Seal, Outlet connection type: Face Seal
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
