In Stock Hot Product
014-1090

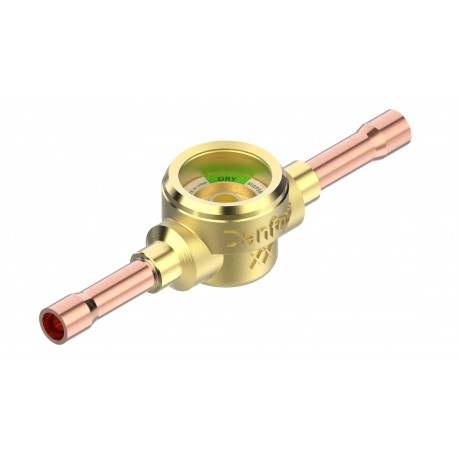

014-1090 DANFOSS REFRIGERATION Sight glass, SGH 6s
$0.00USD
4790 in stock
Key Specifications
EAN ():5702428288859
Type ():SGH 6s
Volume ():0.125 Liter
Net weight ():0.089 Kilogram
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428288859 |
| Type () | SGH 6s |
| Volume () | 0.125 Liter |
| Net weight () | 0.089 Kilogram |
| Serviceable () | No |
| Gross weight () | 0.118 Kilogram |
| Refrigerants () | R410A |
| Body material () | Brass |
| Product group () | Sight glasses |
| Packing format () | Multi pack |
| Inlet size [in] () | 1/4 in |
| Outlet size [in] () | 1/4 in |
| SCIP dossier no. () | 323c7b85-ff73-43cd-8fce-a44eabbf5297 |
| EU RoHS compliance () | Yes with exemptions |
| Moisture indicator () | H indicator |
| UK RoHS compliance () | Out of scope |
| Connection material () | Copper |
| Product accessories () | No |
| China RoHS compliance () | Yes exceed limitations |
| Inlet connection type () | Solder, ODF |
| Outlet connection type () | Solder, ODF |
| EU RoHS exemption clause () | 6(c) |
| Product Name Description () | Sight glass |
| Green: max moist con@25 °C () | R410A: 25 ppm |
| Green: max moist con@43 °C () | R410A: 60 ppm |
| Max. Working Pressure [bar] () | 46 bar |
| Quantity per packing format () | 25 pc |
| Max. Working Pressure [psig] () | 667 psig |
| Yellow: min moist con@25 °C () | R410A: 165 ppm |
| Yellow: min moist con@43 °C () | R410A: 500 ppm |
| Temperature range [°C] [max] () | 80 °C |
| Temperature range [°C] [min] () | -50 °C |
| Temperature range [°F] [max] () | 175 °F |
| Temperature range [°F] [min] () | -58 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1)Cobalt dichloride (CAS no. 7646-79-9) |
| In scope of WEEE and contain batteries () | No |
Product Description
SGH 6s, Sight glass, Solder, ODF, Solder, ODF
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
