In Stock Hot Product
014-0045

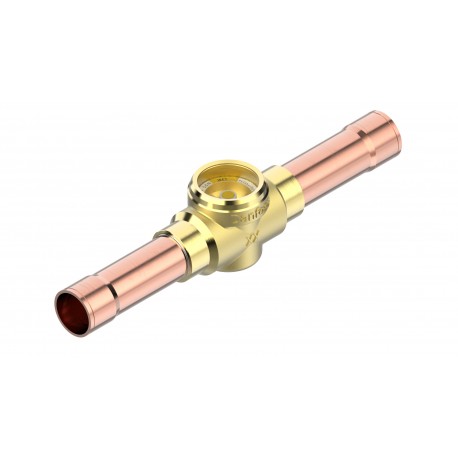

014-0045 DANFOSS REFRIGERATION Sight glass, SGI 18s
$0.00USD
4015 in stock
Key Specifications
EAN ():5702422022381
Type ():SGI 18s
Volume ():0.271 Liter
Net weight ():0.249 Kg
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702422022381 |
| Type () | SGI 18s |
| Volume () | 0.271 Liter |
| Net weight () | 0.249 Kg |
| Serviceable () | No |
| Gross weight () | 0.386 Kg |
| Refrigerants () | R22 |
| Body material () | Brass |
| Product group () | Sight glasses |
| Packing format () | Multi pack |
| Inlet size [mm] () | 18 mm |
| Outlet size [mm] () | 18 mm |
| SCIP dossier no. () | 323c7b85-ff73-43cd-8fce-a44eabbf5297 |
| EU RoHS compliance () | Yes with exemptions |
| Moisture indicator () | I indicator |
| Connection material () | Copper |
| Product accessories () | No |
| Inlet connection type () | Solder, ODF |
| Outlet connection type () | Solder, ODF |
| Product Name Description () | Sight glass |
| Green: max moist con@25 °C () | R22: 150 ppm |
| Green: max moist con@43 °C () | R22: 250 ppm |
| Max. Working Pressure [bar] () | 35 bar |
| Quantity per packing format () | 28 pc |
| Max. Working Pressure [psig] () | 500 psig |
| Yellow: min moist con@25 °C () | R22: 300 ppm |
| Yellow: min moist con@43 °C () | R22: 500 ppm |
| Temperature range [°C] [max] () | 80 °C |
| Temperature range [°C] [min] () | -50 °C |
| Temperature range [°F] [max] () | 175 °F |
| Temperature range [°F] [min] () | -58 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1)Cobalt dichloride (CAS no. 7646-79-9) |
| In scope of WEEE and contain batteries () | No |
Product Description
SGI 18s, Sight glass, Solder, ODF, 18.00 mm, Solder, ODF, 18.00 mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: Solder, ODF, Inlet size [mm]: 18.00, Outlet connection type: Solder, ODF, Outlet size [mm]: 18.00
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
