013U8008

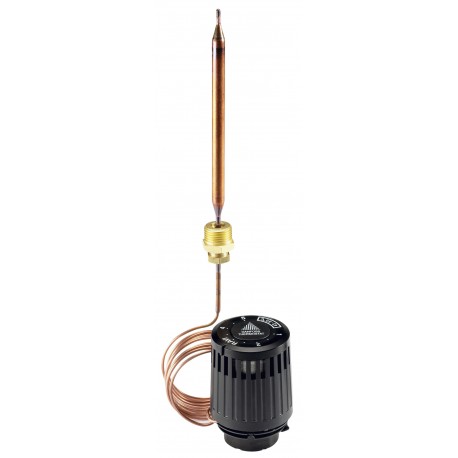

013U8008 DANFOSS HEATING RAVI PN10 43-65/2m
$0.00USD
3034 in stock
Key Specifications
EAN ():5702421500415
Type ():RAVI
Volume ():2.35 Liter
Gain Ks ():0.25
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702421500415 |
| Type () | RAVI |
| Volume () | 2.35 Liter |
| Gain Ks () | 0.25 |
| Function () | Temp. controller |
| Net weight () | 0.37 Kilogram |
| Description () | RAVI PN10 43-65/2m |
| Gross weight () | 0.446 Kilogram |
| Product group () | Actuators - Temperature |
| Mounting version () | Return |
| SCIP dossier no. () | 9eff2b20-4e4a-46da-b447-f3bc37989436 |
| Approval standard () | DIN EN 14597:2005-12 TR838 |
| Sensor connection () | M14x1 / R1/2 ext thread acc. DIN 2999 |
| EU RoHS compliance () | Yes with exemptions |
| Time constant [sec] () | 3 " |
| Impulse tube material () | Copper mat. No 2.0090 |
| EU RoHS exemption clause () | 6(c) |
| Capillary tube length [m] () | 2 m |
| SCIP dossier product name () | RAVI PN10 |
| Temperature sensor material () | Copper mat. No 2.0090 |
| Temperature sensor mounting () | Sensor warmer |
| Temperature sensor length [mm] () | 150 mm |
| Ambient temperature [°C] [max] () | 70 °C |
| Ambient temperature [°C] [min] () | 0 °C |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Temperature sensor diameter [mm] () | 9.5 mm |
| Transport temperature [°C] [Max] () | 50 °C |
| Transport temperature [°C] [Min] () | -20 °C |
| Temperature setting range [°C] [Max] () | 65 °C |
| Temperature setting range [°C] [Min] () | 43 °C |
| In scope of WEEE and contain batteries () | No |
| Media temperature at sensor [°C] [Max] () | 70 °C |
Product Description
RAVI, 43 °C - 65 °C, 2.0 m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
RAVI PN10 43-65/2m
