In Stock Hot Product
013U3020

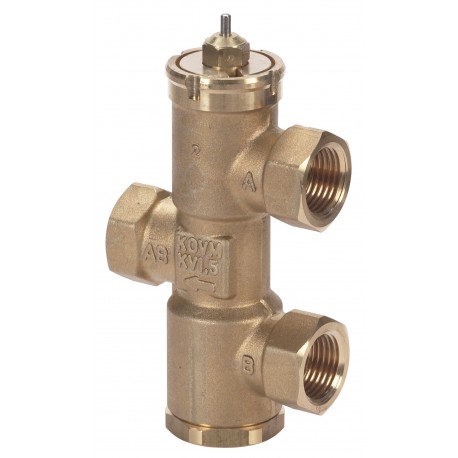

013U3020 DANFOSS HEATING KOVM PN10 15/2 3-way int. thread
$0.00USD
4729 in stock
Key Specifications
EAN ():5702421300442
Type ():KOVM
Volume ():0.821 Liter
Function ():Control valve
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702421300442 |
| Type () | KOVM |
| Volume () | 0.821 Liter |
| Function () | Control valve |
| Function 2 () | Mixing valve |
| Net weight () | 0.645 Kilogram |
| Valve size () | DN 15 |
| Application () | Heating and cooling |
| Description () | KOVM PN10 15/2 3-way int. thread |
| Stroke [mm] () | 1.5 mm |
| Gross weight () | 0.645 Kilogram |
| Diameter [mm] () | 15 mm |
| Product group () | Motorized control valves |
| Media pH [Max] () | 10 |
| Media pH [Min] () | 7 |
| Pressure class () | PN 10 |
| Connection size () | Rp 1/2 |
| Number of ports () | 3 |
| Connection types () | Internal thread |
| Mounting version () | Free |
| Spindle material () | Stainless steel 18/8 |
| Spindle position () | Normally open |
| Cavitation factor () | 0.5 |
| Permissible media () | District heating/cooling circulation water |
| EU RoHS compliance () | Yes with exemptions |
| Kvs values [m³/h] () | 2 m³/h |
| Medium alternative () | Glycolic water up to 30% |
| PN alternative VSP () | 6 |
| Connection standard () | ISO 7/1 |
| Flow characteristic () | Linear |
| Valve body material () | Brass W. No 2.0402 |
| Valve cone material () | EPDM |
| Pressure nominal [bar] () | 10 bar |
| EU RoHS exemption clause () | 6(c) |
| Media temperature [°C] [Max] () | 90 °C |
| Media temperature [°C] [Min] () | 2 °C |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
| Differential pressure range [bar] [Max] () | 1.6 bar |
Product Description
KOVM, PN 10, DN 15, 2.00 m³/h, Rp 1/2
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
KOVM PN10 15/2 3-way int. thread
