013G5056

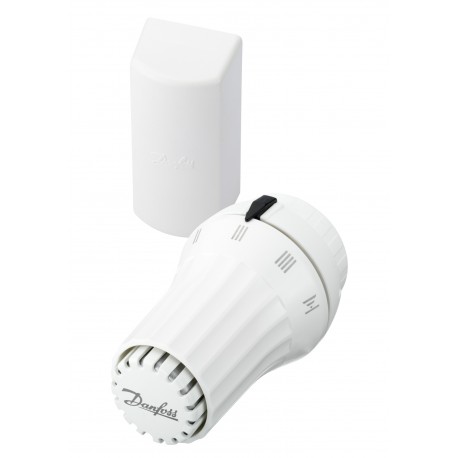

013G5056 DANFOSS HEATING RAE 5056 FF
$0.00USD
4744 in stock
Key Specifications
EAN ():5702420044965
Type ():RAE Sensors
Colour ():White RAL 9016
Volume ():0.68 Liter
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702420044965 |
| Type () | RAE Sensors |
| Colour () | White RAL 9016 |
| Volume () | 0.68 Liter |
| Net weight () | 0.222 Kilogram |
| Description () | Frost protection, limiting and locking of temperature set-point, white socket |
| Sensor type () | Remote Sensor |
| Gross weight () | 0.222 Kilogram |
| Sensor media () | Liquid |
| Product group () | Radiator Sensors |
| Sensor design () | RAE |
| Sensor version () | RAE 5056 |
| Contents of set () | Sensor |
| Frost protection () | Yes |
| SCIP dossier no. () | 597688f1-4d21-4d51-9061-a2104dfd99d7 |
| Shut-off function () | No |
| EU RoHS compliance () | Yes with exemptions |
| UK RoHS compliance () | Out of scope |
| China RoHS compliance () | Out of scope |
| Temperature limitation () | Yes |
| Connection type to valve () | RA |
| EU RoHS exemption clause () | 6(a)6(c) |
| Connection type to sensor () | RA-click |
| SCIP dossier product name () | RAW RAE RAS-C RAS-D RS Sensor 1 |
| Capillary tube length [m] [Max] () | 2 m |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
| Sensor setting temperature [°C] [Max] () | 28 °C |
| Sensor setting temperature [°C] [Min] () | 8 °C |
Product Description
RAE Sensors, RAE 5056, Liquid, Sensor type: Remote sensor, 8 °C - 28 °C, RA
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Frost protection, limiting and locking of temperature set-point, white socket
