013G4218

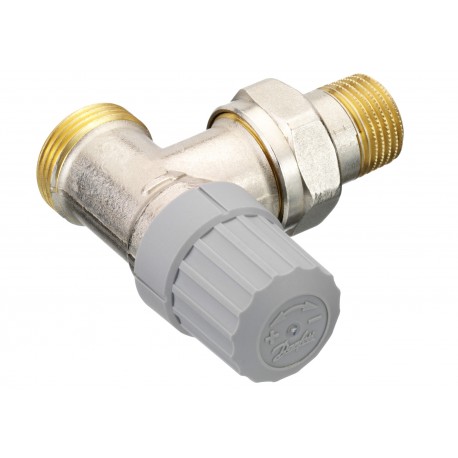

013G4218 DANFOSS HEATING RA-FN 15 Angle Ext. thread
$0.00USD
4135 in stock
Key Specifications
EAN ():5702420063195
Type ():RA-FN
Design ():Angle
Finish ():Nickel plated
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702420063195 |
| Type () | RA-FN |
| Design () | Angle |
| Finish () | Nickel plated |
| Volume () | 0.256 Liter |
| Net weight () | 0.255 Kilogram |
| Presetting () | no |
| Valve size () | DN 15 |
| Valve type () | Fixed capacity |
| Application () | 2-pipe system |
| Description () | Normal flow valves without presetting, external thread |
| Gross weight () | 0.258 Kilogram |
| Product group () | Radiator Valves |
| Tailpiece type () | Standard |
| Connection types () | External Thread |
| Connection size in () | G 3/4 A |
| Dimension standard () | F |
| EU RoHS compliance () | Yes with exemptions |
| Kvs values [m³/h] () | 0.9 m³/h |
| UK RoHS compliance () | Out of scope |
| Connection size out () | R 1/2 |
| Test pressure [bar] () | 16 bar |
| China RoHS compliance () | Out of scope |
| EU RoHS exemption clause () | 6(c) |
| Flow temperature [°C] [Max] () | 120 °C |
| Working pressure [bar] [Max] () | 10 bar |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
| Differential pressure range [bar] [Max] () | 0.6 bar |
| Kv value at Xp = 0.5 - 2.0 K [m³/h] [Max] () | 0.73 m³/h |
| Kv value at Xp = 0.5 - 2.0 K [m³/h] [Min] () | 0.22 m³/h |
Product Description
Radiator Valves, RA-FN, Fixed capacity, DN 15, Angle, F
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Normal flow valves without presetting, external thread
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
