In Stock Hot Product
013G4191

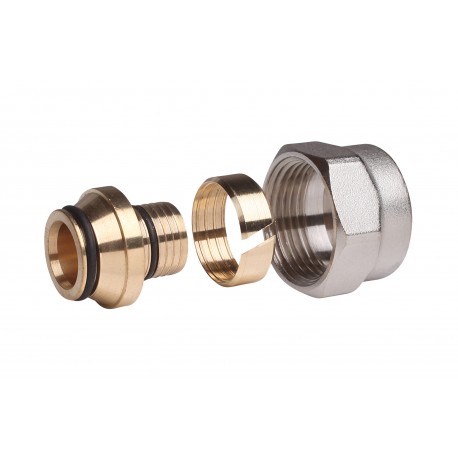

013G4191 DANFOSS HEATING Fitting for 20x2,5mm Alupex tube, G 3/4"
$0.00USD
3827 in stock
Key Specifications
EAN ():5702420033570
Type ():Compression fittings for Alupex tubings
Usage ():for AluPex
Finish ():Nickel plated
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702420033570 |
| Type () | Compression fittings for Alupex tubings |
| Usage () | for AluPex |
| Finish () | Nickel plated |
| Thread () | Internal |
| Volume () | 0.05 Liter |
| For valves () | CouplingsManifold CFDRA 15/6TRA 15/6TBRA-C 15RLV-KRLV-KSRLV-KDV |
| Net weight () | 0.072 Kilogram |
| Connections () | G 3/4" |
| Description () | Alupex fittings for pipe 20 x 2.5 mm |
| For tubings () | Alupex |
| Gross weight () | 0.072 Kilogram |
| Product group () | Compression fittings |
| SCIP dossier no. () | a76c5ed7-e33e-4d63-b06e-8751d1fc2312 |
| Test pressure [bar] () | 10 bar |
| Tube dimension [mm] () | 20x2.5 |
| SCIP dossier product name () | Fittings for plastic pipe, 3/4" |
| Flow temperature [°C] [Max] () | 95 °C |
| Working pressure [bar] [Max] () | 6 bar |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
Compression fittings for Alupex tubings, G 3/4", 20x2.5, Nickel plated
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Alupex fittings for pipe 20 x 2.5 mm
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
