In Stock Hot Product
013G4128

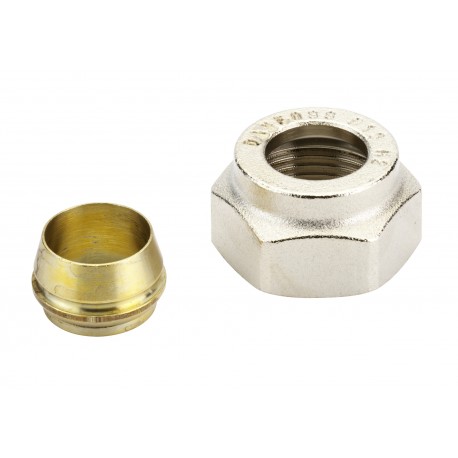

013G4128 DANFOSS HEATING Comp. fittings for VMT PN10 DN15 fi 18x1
$0.00USD
3622 in stock
Key Specifications
EAN ():5702420033280
Type ():Compression fittings for steel and copper tubings
Usage ():for steel & copper
Finish ():Nickel plated
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702420033280 |
| Type () | Compression fittings for steel and copper tubings |
| Usage () | for steel & copper |
| Finish () | Nickel plated |
| Thread () | Internal |
| Volume () | 0.083 Liter |
| For valves () | CouplingsManifold CFDRA 15/6TRA 15/6TBRA-C 15RLV-KRLV-KSRLV-KDV |
| Net weight () | 0.061 Kilogram |
| Connections () | G 3/4" |
| Description () | Compression fittings G¾ x 18 |
| For tubings () | Steel and Copper |
| Gross weight () | 0.064 Kilogram |
| Label product () | Yes |
| Product group () | Compression fittings |
| EU RoHS compliance () | Yes with exemptions |
| Test pressure [bar] () | 16 bar |
| Tube dimension [mm] () | 18 |
| EU RoHS exemption clause () | 6(c) |
| Flow temperature [°C] [Max] () | 120 °C |
| Working pressure [bar] [Max] () | 10 bar |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
Compression fittings for steel and copper tubings, G 3/4", 18, Nickel plated
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Compression fittings G¾ x 18
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
