In Stock Hot Product
013G3220

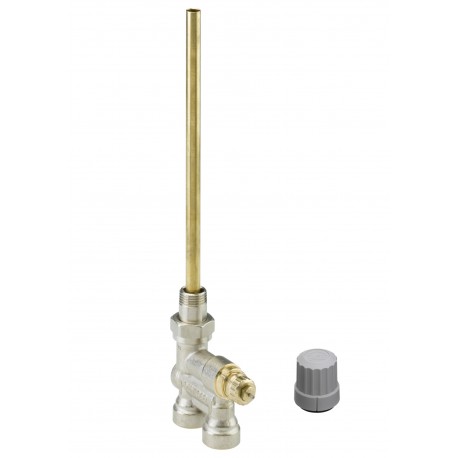

013G3220 DANFOSS HEATING RA 15/6T BY-PAS
$0.00USD
3668 in stock
Key Specifications
EAN ():5702420016207
Type ():RA 15/6T
Design ():Floor connection
Volume ():1.064 Liter
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702420016207 |
| Type () | RA 15/6T |
| Design () | Floor connection |
| Volume () | 1.064 Liter |
| Net weight () | 0.51 Kilogram |
| Application () | 1-pipe system |
| Description () | RA 15/6T special lance (bypass) valve for radiator underneath connection |
| Gross weight () | 0.518 Kilogram |
| Product group () | Lance Valves |
| SCIP dossier no. () | 8104989b-087d-4cd3-a025-bd21bf274b41 |
| Connection size in () | Rp 1/2 |
| Kvs values [m³/h] () | 2.15 m³/h |
| Connection size out () | R 1/2 |
| Test pressure [bar] () | 16 bar |
| SCIP dossier product name () | RA 15/6T & 15/6TB Radiator valve 3 |
| Flow temperature [°C] [Max] () | 120 °C |
| Working pressure [bar] [Max] () | 10 bar |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
| Differential pressure range [bar] [Max] () | 0.6 bar |
Product Description
Lance Valves, RA 15/6T, Floor connection, Rp 1/2
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
RA 15/6T special lance (bypass) valve for radiator underneath connection
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
