In Stock Hot Product
013G2920

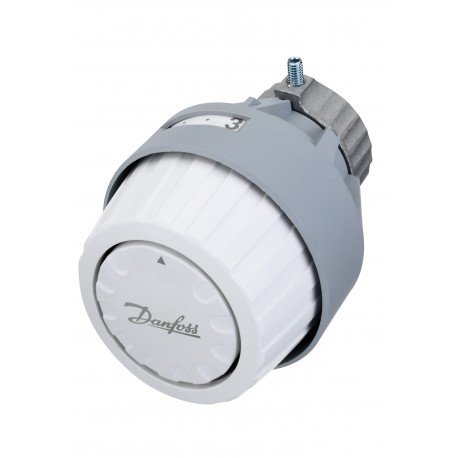

013G2920 DANFOSS HEATING RA2920 IF, Tamper Proof, Allen Screw
$0.00USD
4805 in stock
Key Specifications
EAN ():5702420048215
Type ():RA 2000 Sensors
Colour ():White RAL 9016
Volume ():0.34 Liter
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702420048215 |
| Type () | RA 2000 Sensors |
| Colour () | White RAL 9016 |
| Volume () | 0.34 Liter |
| Net weight () | 0.164 Kilogram |
| Description () | Frost protection, limiting and locking of temperature set-point, tamperproof, connection with clamping ring and Allen screw |
| Sensor type () | Built-in sensor |
| Gross weight () | 0.164 Kilogram |
| Sensor media () | Gas |
| Product group () | Radiator Sensors |
| Sensor design () | RA 2000 |
| Sensor version () | RA 2920 |
| Contents of set () | Sensor |
| Frost protection () | Yes |
| Shut-off function () | No |
| EU RoHS compliance () | Out of scope |
| UK RoHS compliance () | Out of scope |
| China RoHS compliance () | Out of scope |
| Temperature limitation () | Yes |
| Connection type to valve () | RA |
| Connection type to sensor () | Allen screw |
| Capillary tube length [m] [Max] () | 0 m |
| REACH Candidate List substances () | No |
| In scope of WEEE and contain batteries () | No |
| Sensor setting temperature [°C] [Max] () | 26 °C |
| Sensor setting temperature [°C] [Min] () | 5 °C |
Product Description
RA 2000 Sensors, RA 2920, Gas, Sensor type: Built-in sensor, 5 °C - 26 °C, RA
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Frost protection, limiting and locking of temperature set-point, tamperproof, connection with clamping ring and Allen screw
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
