013G0155

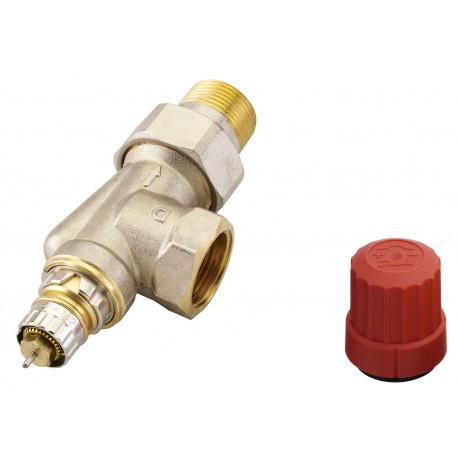

013G0155 DANFOSS HEATING RA-N 20 UK "D"
$0.00USD
4763 in stock
Key Specifications
EAN ():5702420009940
Type ():RA-N
Design ():Horizontal angle
Finish ():Nickel plated
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702420009940 |
| Type () | RA-N |
| Design () | Horizontal angle |
| Finish () | Nickel plated |
| Volume () | 0.347 Liter |
| Net weight () | 0.424 Kilogram |
| Presetting () | yes |
| Valve size () | DN 20 |
| Valve type () | Normal flow |
| Application () | 2-pipe system |
| Description () | Normal flow valves with presetting |
| Gross weight () | 0.442 Kilogram |
| Product group () | Radiator Valves |
| Tailpiece type () | Standard |
| Connection types () | Internal thread |
| SCIP dossier no. () | 972fb25a-aad7-4155-b11b-6f68491564c8 |
| Connection size in () | Rp 3/4 |
| Dimension standard () | D |
| EU RoHS compliance () | Yes with exemptions |
| Kvs values [m³/h] () | 1 m³/h |
| UK RoHS compliance () | Out of scope |
| Connection size out () | R 3/4 |
| Test pressure [bar] () | 16 bar |
| China RoHS compliance () | Out of scope |
| EU RoHS exemption clause () | 6(c) |
| SCIP dossier product name () | RA-N & -IN Radiator valve 2 |
| Flow temperature [°C] [Max] () | 120 °C |
| Working pressure [bar] [Max] () | 10 bar |
| Kv value at setting 1 [m³/h] () | 0.16 m³/h |
| Kv value at setting 2 [m³/h] () | 0.2 m³/h |
| Kv value at setting 3 [m³/h] () | 0.25 m³/h |
| Kv value at setting 4 [m³/h] () | 0.35 m³/h |
| Kv value at setting 5 [m³/h] () | 0.47 m³/h |
| Kv value at setting 6 [m³/h] () | 0.6 m³/h |
| Kv value at setting 7 [m³/h] () | 0.73 m³/h |
| Kv value at setting N [m³/h] () | 0.8 m³/h |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
| Differential pressure range [bar] [Max] () | 0.6 bar |
Product Description
Radiator Valves, RA-N, Normal flow, DN 20, Horizontal angle, D
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Normal flow valves with presetting
