In Stock Hot Product
009L7529

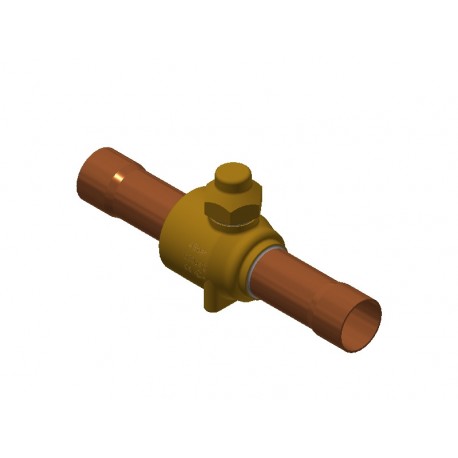

009L7529 DANFOSS REFRIGERATION Shut-off ball valve
$0.00USD
3396 in stock
Key Specifications
EAN ():5702428515245
Type ():GBC 42s
Volume ():4.312 Liter
Approval ():CEUKCAUL
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428515245 |
| Type () | GBC 42s |
| Volume () | 4.312 Liter |
| Approval () | CEUKCAUL |
| Direction () | Straightway |
| Equipment () | Cap w. wire seal |
| Net weight () | 2.087 Kilogram |
| Access port () | No |
| Fluid Group () | 2 |
| Serviceable () | BM/GBC valve spare parts |
| CE evaluated () | Yes |
| Gross weight () | 2.67 Kilogram |
| PED category () | I |
| Refrigerants () | R744 |
| UL evaluated () | Yes |
| Body material () | Brass |
| Product group () | Shut-off and regulating valves |
| Flow direction () | Single-flow |
| Packing format () | Multi pack |
| Inlet size [in] () | 1 5/8 in |
| Kv value [m³/h] () | 134.76 m³/h |
| Outlet size [in] () | 1 5/8 in |
| SCIP dossier no. () | 4b2fe785-688b-4157-ad7e-68b26c6e3e7b |
| Cv value [gal/min] () | 155.78 gal/min |
| EU RoHS compliance () | Yes with exemptions |
| UK RoHS compliance () | Out of scope |
| Connection material () | Copper |
| Product accessories () | BM/GBC valve accessories |
| China RoHS compliance () | Yes exceed limitations |
| Inlet connection type () | Solder, ODF |
| Outlet connection type () | Solder, ODF |
| EU RoHS exemption clause () | 6(c) |
| Flow direction indicator () | Embossed 1-way arrow |
| Product Name Description () | Shut-off ball valve |
| UL approved refrigerants () | R744 |
| Ignition source assessment () | Yes |
| Max. Working Pressure [bar] () | 45 bar |
| Quantity per packing format () | 4 pc |
| Max. Working Pressure [psig] () | 650 psig |
| Temperature range [°C] [max] () | 100 °C |
| Temperature range [°C] [min] () | -40 °C |
| Temperature range [°F] [max] () | 212 °F |
| Temperature range [°F] [min] () | -40 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
GBC 42s CO2 45barBall Valve M/4
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Inlet size [in]: 1 5/8 in, Outlet size [in]: 1 5/8 in
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
