009L7097

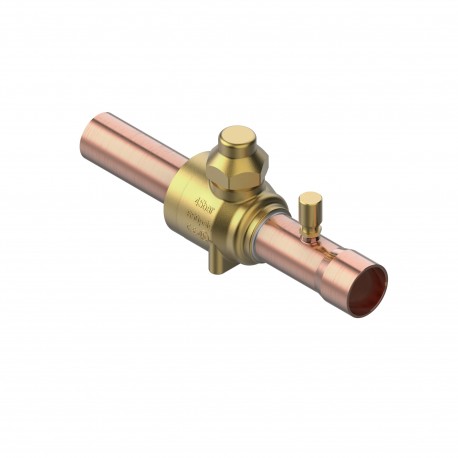

009L7097 DANFOSS REFRIGERATION Shut-off ball valve, GBC 28s
$0.00USD
3575 in stock
Key Specifications
EAN ():5702428515528
Type ():GBC 28s
Volume ():2.545 Liter
Approval ():CEULEACLLC CDC EURO-TYSKUKCA
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428515528 |
| Type () | GBC 28s |
| Volume () | 2.545 Liter |
| Approval () | CEULEACLLC CDC EURO-TYSKUKCA |
| Direction () | Straightway |
| Equipment () | Cap w. wire seal |
| Net weight () | 0.897 Kg |
| Access port () | Yes |
| Fluid Group () | 12 |
| Serviceable () | BM/GBC valve spare parts |
| Gross weight () | 1.065 Kg |
| PED category () | Art. 4, par. 3 |
| Refrigerants () | R134aR22/R407CR407AR407FR410AR448AR449AR450AR452AR513AR407HR449BR515BR1234ze(E)R1234yfR290R452BR454BR454CR455AR516AR404A/R507AR454AR463AR32 |
| Body material () | Brass |
| Product group () | Shut-off and regulating valves |
| Flow direction () | Bi-flow |
| Packing format () | Multi pack |
| Parts included () | Schrader valve |
| Inlet size [in] () | 1 1/8 in |
| Kv value [m³/h] () | 62.25 m³/h |
| Outlet size [in] () | 1 1/8 in |
| Cv value [gal/min] () | 71.96 gal/min |
| EU RoHS compliance () | Yes with exemptions |
| Connection material () | Copper |
| Product accessories () | BM/GBC valve accessories |
| Inlet connection type () | Solder, ODF |
| Oil free refrigerants () | R1234ze(E)R134aR513AR515BR516A |
| Panel mounting option () | M4 × 0.7 (2 PC) |
| Outlet connection type () | Solder, ODM |
| Flow direction indicator () | Embossed 2-way arrow |
| Product Name Description () | Shut-off ball valve |
| UL approved refrigerants () | R134aR22R404AR407AR407CR407FR407HR410AR448AR449AR449BR450AR452AR507AR513AR515BR516AR1234yfR1234ze(E)R290R32R452BR454AR454BR454CR455AR463A |
| Max. Working Pressure [bar] () | 45 bar |
| Quantity per packing format () | 5 pc |
| Max. Working Pressure [psig] () | 650 psig |
| Temperature range [°C] [max] () | 150 °C |
| Temperature range [°C] [min] () | -40 °C |
| Temperature range [°F] [max] () | 300 °F |
| Temperature range [°F] [min] () | -40 °F |
| Max. media temp. Oil free [°C] () | 80 °C |
| In scope of WEEE and contain batteries () | No |
Product Description
GBC 28s Ball Valve M/5
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODM, Inlet size [in]: 1 1/8 in, Outlet size [in]: 1 1/8 in
