009L7023

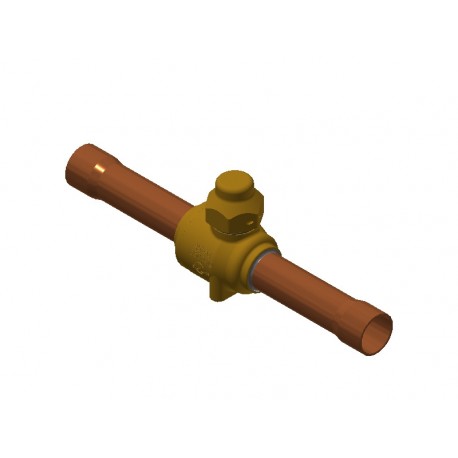

009L7023 DANFOSS REFRIGERATION Shut-off ball valve
$0.00USD
3667 in stock
Key Specifications
EAN ():5702428515788
Type ():GBC 16s
Volume ():0.778 Liter
Approval ():C UL US LISTEDCEEACUKCA
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428515788 |
| Type () | GBC 16s |
| Volume () | 0.778 Liter |
| Approval () | C UL US LISTEDCEEACUKCA |
| Direction () | Straightway |
| Equipment () | Cap w. wire seal |
| Net weight () | 0.228 Kg |
| Access port () | No |
| Fluid Group () | 12 |
| Serviceable () | BM/GBC valve spare parts |
| Gross weight () | 0.284 Kg |
| PED category () | Art. 4, par. 3 |
| Refrigerants () | R134aR22/R407CR407AR407FR410AR448AR449AR450AR452AR513AR1234yfR407HR449BR454CR455AR515BR516AR1234ze(E)R290R452BR454BR454AR404A/R507AR463AR32 |
| Body material () | Brass |
| Product group () | Shut-off and regulating valves |
| Flow direction () | Bi-flow |
| Packing format () | Multi pack |
| Inlet size [in] () | 5/8 in |
| Inlet size [mm] () | 16 mm |
| Kv value [m³/h] () | 15.66 m³/h |
| Outlet size [in] () | 5/8 in |
| Outlet size [mm] () | 16 mm |
| SCIP dossier no. () | 4b2fe785-688b-4157-ad7e-68b26c6e3e7b |
| Identical product () | 009L7723 |
| Cv value [gal/min] () | 18.1 gal/min |
| EU RoHS compliance () | Yes with exemptions |
| Connection material () | Copper |
| Product accessories () | BM/GBC valve accessories |
| Inlet connection type () | Solder, ODF |
| Oil free refrigerants () | R1234ze(E)R134aR513AR515BR516A |
| Panel mounting option () | M4 × 0.7 (2 PC) |
| Outlet connection type () | Solder, ODF |
| Flow direction indicator () | Embossed 2-way arrow |
| Product Name Description () | Shut-off ball valve |
| UL approved refrigerants () | R134aR22R404AR407AR407CR407FR407HR410AR448AR449AR449BR450AR452AR507AR513AR515BR516AR1234yfR1234ze(E)R290R32R452BR454AR454BR454CR455AR463A |
| Max. Working Pressure [bar] () | 45 bar |
| Quantity per packing format () | 25 pc |
| Max. Working Pressure [psig] () | 650 psig |
| Temperature range [°C] [max] () | 150 °C |
| Temperature range [°C] [min] () | -40 °C |
| Temperature range [°F] [max] () | 300 °F |
| Temperature range [°F] [min] () | -40 °F |
| Max. media temp. Oil free [°C] () | 80 °C |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
GBC 16s Ball Valve M/25
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Inlet size [mm]: 16.00, Outlet size [mm]: 16.00, Inlet size [in]: 5/8 in, Outlet size [in]: 5/8 in
