009L7000

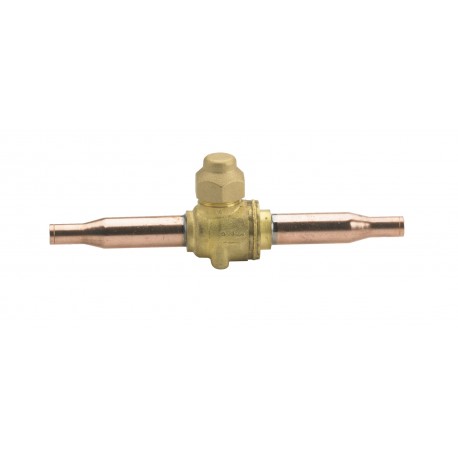

009L7000 DANFOSS REFRIGERATION Shut-off ball valve, GBC 22s
$0.00USD
4505 in stock
Key Specifications
EAN:5702428515856
Approval:C UL US LISTEDCECSAEAC
Direction:Straightway
Equipment:Cap w. wire seal (EN 378 comp)
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428515856 |
| Approval | C UL US LISTEDCECSAEAC |
| Direction | Straightway |
| Equipment | Cap w. wire seal (EN 378 comp) |
| Net weight | 0.4 Kg |
| Access port | NO |
| Serviceable | BM/GBC valve spare parts |
| Gross weight | 0.46 Kg |
| Product name | Shut-off ball valve |
| Product type | GBC 22s |
| Refrigerants | R1234zeR134aR22/R407CR32R404A/R507R407AR407FR410AR448AR449AR450AR452AR513A |
| Body material | Brass |
| Product Group | Shut-off and regulating valves |
| Flow direction | Bi-flow |
| Packing format | Multi pack |
| Inlet size [in] | 7/8 IN |
| Inlet size [mm] | 22 mm |
| Kv value [m³/h] | 33.34 m3/h |
| Outlet size [in] | 7/8 IN |
| Outlet size [mm] | 22 mm |
| Cv value [gal/min] | 38.54 gal/min |
| Connection material | Copper |
| Product accessories | BM/GBC valve accessories |
| Product description | Ball Valve |
| Product family name | GBC v2 |
| Inlet connection type | SOLDER, ODF |
| Panel mounting option | M4 × 0.7 (2 PC) |
| Outlet connection type | SOLDER, ODM |
| System line application | Discharge lineLiquid feed lineLiquid lineSuction lineWet return line |
| Flow direction indicator | Embossed 2-way arrow |
| Max. test pressure [bar] | 65 bar |
| Max. test pressure [psig] | 940 psig |
| Max. Working Pressure [bar] | 45 bar |
| Quantity per packing format | 5 pc |
| Max. Working Pressure [psig] | 650 psig |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 300 °F |
| Temperature range [°F] [Min] | -40 °F |
Product Description
GBC 22s Ball Valve ODF7/8xODM7/8 M/5
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
