009G7585

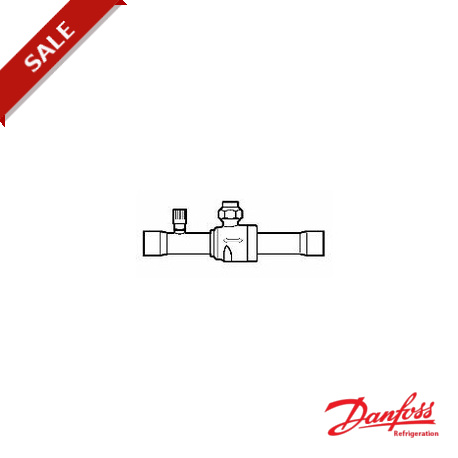

009G7585 DANFOSS REFRIGERATION Shut-off ball valve
$0.00USD
4552 in stock
Key Specifications
EAN:5702428866750
Approval:CE
Direction:Straightway
Equipment:Cap w. wire seal (EN 378 comp)
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428866750 |
| Approval | CE |
| Direction | Straightway |
| Equipment | Cap w. wire seal (EN 378 comp) |
| Net weight | 0.25 Kg |
| Access port | YES |
| Serviceable | BM/GBC valve spare parts |
| Gross weight | 0.36 Kg |
| Product name | Shut-off ball valve |
| Product type | GBC 12s H |
| Refrigerants | R744 |
| Body material | Brass |
| Product Group | Shut-off and regulating valves |
| Flow direction | Bi-flow |
| Packing format | Multi pack |
| Parts included | Schrader valve |
| Inlet size [in] | 1/2 IN |
| Kv value [m³/h] | 12.87 m3/h |
| Outlet size [in] | 1/2 IN |
| Cv value [gal/min] | 14.88 gal/min |
| Connection material | Copper |
| Product accessories | BM/GBC valve accessories |
| Product description | Ball Valve |
| Inlet connection type | SOLDER, ODF |
| Panel mounting option | M4 × 0.7 (2 PC) |
| Outlet connection type | SOLDER, ODF |
| Flow direction indicator | Embossed 2-way arrow |
| Max. test pressure [bar] | 130 bar |
| Max. test pressure [psig] | 1885 psig |
| Max. Working Pressure [bar] | 90 bar |
| Quantity per packing format | 25 pc |
| Max. Working Pressure [psig] | 1305 psig |
| Temperature range [°C] [Max] | 100 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 212 °F |
| Temperature range [°F] [Min] | -40 °F |
