009G7524

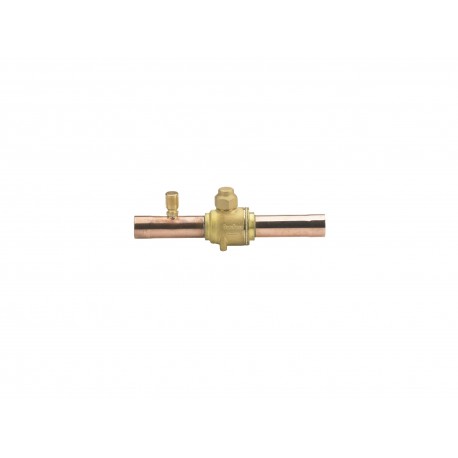

009G7524 DANFOSS REFRIGERATION Shut-off ball valve
$0.00USD
4213 in stock
Key Specifications
EAN:5702428376747
Approval:CECSAUL
Direction:Straightway
Net weight:0.44 Kg
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 5702428376747 |
| Approval | CECSAUL |
| Direction | Straightway |
| Net weight | 0.44 Kg |
| Access port | NO |
| Serviceable | BM/GBC valve spare parts |
| Gross weight | 0.47 Kg |
| Product name | Shut-off ball valve |
| Product type | GBC 18s |
| Refrigerants | R744 |
| Body material | Brass |
| Product Group | Shut-off and regulating valves |
| Flow direction | Single-flow |
| Packing format | Multi pack |
| Inlet size [in] | 3/4 IN |
| Kv value [m³/h] | 21.93 m3/h |
| Outlet size [in] | 3/4 IN |
| Cv value [gal/min] | 25.35 gal/min |
| Connection material | Copper |
| Product accessories | BM/GBC valve accessories |
| Product description | Ball Valve |
| Product family name | GBC |
| Inlet connection type | SOLDER, ODF |
| Outlet connection type | SOLDER, ODF |
| System line application | Discharge lineLiquid feed lineLiquid lineSuction lineWet return line |
| Flow direction indicator | Embossed 1-way arrow |
| Max. test pressure [bar] | 65 bar |
| Max. test pressure [psig] | 940 psig |
| Max. Working Pressure [bar] | 45 bar |
| Quantity per packing format | 25 pc |
| Max. Working Pressure [psig] | 650 psig |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 300 °F |
| Temperature range [°F] [Min] | -40 °F |
