009G7416

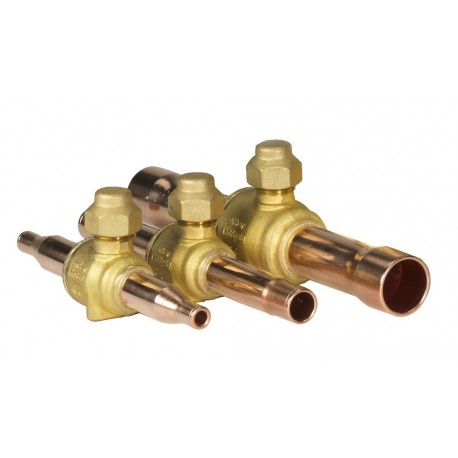

009G7416 DANFOSS REFRIGERATION GBC shut-off ball valve, CO2, 75/90 bar max working pressure
$0.00USD
4786 in stock
Key Specifications
EAN ():5702428439121
Type ():GBC 10s H
Volume ():0.78 Liter
Approval ():CE
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428439121 |
| Type () | GBC 10s H |
| Volume () | 0.78 Liter |
| Approval () | CE |
| Direction () | Straightway |
| Equipment () | Cap w. wire seal (EN 378 comp) |
| Net weight () | 0.23 Kg |
| Access port () | No |
| Serviceable () | BM/GBC valve spare parts |
| Gross weight () | 0.324 Kg |
| Refrigerants () | R744 |
| Body material () | Brass |
| Product group () | Shut-off and regulating valves |
| Flow direction () | Bi-flow |
| Packing format () | Multi pack |
| Inlet size [in] () | 3/8 in |
| Kv value [m³/h] () | 6.31 m³/h |
| Outlet size [in] () | 3/8 in |
| SCIP dossier no. () | 4b2fe785-688b-4157-ad7e-68b26c6e3e7b |
| Cv value [gal/min] () | 7.29 gal/min |
| EU RoHS compliance () | Yes with exemptions |
| Connection material () | Copper |
| Product accessories () | BM/GBC valve accessories |
| Inlet connection type () | Solder, ODF |
| Panel mounting option () | M4 × 0.7 (2 PC) |
| Outlet connection type () | Solder, ODF |
| Flow direction indicator () | Embossed 2-way arrow |
| Max. test pressure [bar] () | 100 bar |
| Product Name Description () | Shut-off ball valve |
| Max. test pressure [psig] () | 1450 psig |
| Max. Working Pressure [bar] () | 90 bar |
| Quantity per packing format () | 25 pc |
| Max. Working Pressure [psig] () | 1305 psig |
| Temperature range [°C] [max] () | 100 °C |
| Temperature range [°C] [min] () | -40 °C |
| Temperature range [°F] [max] () | 212 °F |
| Temperature range [°F] [min] () | -40 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
Shut-off ball valve, GBC 10s H
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF
