009G7415

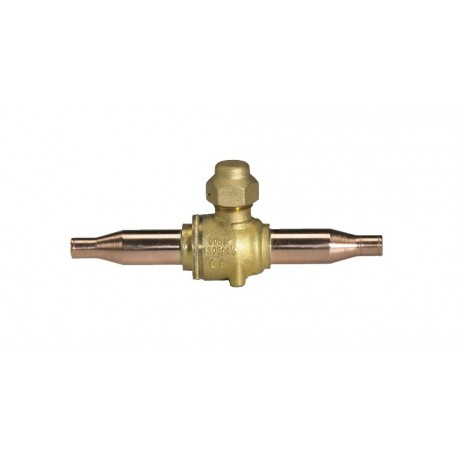

009G7415 DANFOSS REFRIGERATION GBC shut-off ball valve, CO2, 75/90 bar max working pressure
$0.00USD
4198 in stock
Key Specifications
MWP:90,0 bar
Flow:Bi-flow
Weight:0.225 Kg
EAN no.:5702428439114
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| MWP | 90,0 bar |
| Flow | Bi-flow |
| Weight | 0.225 Kg |
| EAN no. | 5702428439114 |
| Equipm. | Cap w. wire seal (EN 378 comp) |
| Approval | CE |
| Cv value | 1,090 gpm US |
| Kv value | 0,940 m3/h |
| Body mat. | BRASS |
| Direction | Straightway |
| Pack qty. | 25 pc |
| Type Code | GBC 6s H |
| Conn. mat. | COPPER |
| Inlet size | 1/4 IN |
| Inlet type | SOLDER, ODF |
| Prod. name | Shut-off ball valve |
| Access port | No |
| Outlet size | 1/4 IN |
| Outlet type | SOLDER, ODF |
| Pack format | Multi pack |
| Prod. Group | Shut-off and regulating valves |
| Refrigerant | R744 |
| Serviceable | BM/GBC valve spare parts |
| Temp. range | -40 - 100 °C |
| Max. test pressure | 100,0 bar |
| Flow dir. indicator | Embossed 2-way arrow |
| Panel mount. option | M4 × 0.7 (2 PC) |
| Product accessories | BM/GBC valve accessories |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
