009G7059

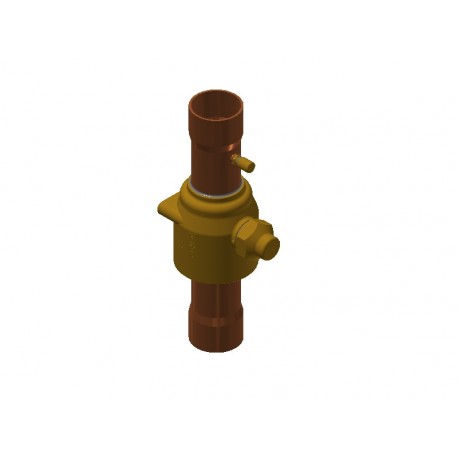

009G7059 DANFOSS REFRIGERATION Shut-off ball valve
$0.00USD
3351 in stock
Key Specifications
EAN ():5702428065887
Type ():GBC 54s
Volume ():8.316 Liter
Approval ():C UL US LISTEDCEEACUKCA
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428065887 |
| Type () | GBC 54s |
| Volume () | 8.316 Liter |
| Approval () | C UL US LISTEDCEEACUKCA |
| Direction () | Straightway |
| Equipment () | Cap w. wire seal |
| Net weight () | 4.225 Kilogram |
| Access port () | Yes |
| Serviceable () | BM/GBC valve spare parts |
| CE evaluated () | Yes |
| Gross weight () | 4.747 Kilogram |
| Refrigerants () | R1234ze(E)R134aR22/R407CR404A/R507AR407AR407FR410AR448AR449AR450AR452AR513A |
| UL evaluated () | Yes |
| Body material () | Brass |
| Product group () | Shut-off and regulating valves |
| Flow direction () | Bi-flow |
| Packing format () | Multi pack |
| Parts included () | Schrader valve |
| Inlet size [in] () | 2 1/8 in |
| Inlet size [mm] () | 54 mm |
| Kv value [m³/h] () | 240.11 m³/h |
| Outlet size [in] () | 2 1/8 in |
| Outlet size [mm] () | 54 mm |
| SCIP dossier no. () | 4b2fe785-688b-4157-ad7e-68b26c6e3e7b |
| Cv value [gal/min] () | 277.57 gal/min |
| EU RoHS compliance () | Yes with exemptions |
| UK RoHS compliance () | Out of scope |
| Connection material () | Copper |
| Product accessories () | BM/GBC valve accessories |
| China RoHS compliance () | Yes exceed limitations |
| Inlet connection type () | Solder, ODF |
| Panel mounting option () | M6 × 1.0 (2 PC) |
| Outlet connection type () | Solder, ODF |
| EU RoHS exemption clause () | 6(c) |
| Flow direction indicator () | Embossed 2-way arrow |
| Max. test pressure [bar] () | 65 bar |
| Product Name Description () | Shut-off ball valve |
| UL approved refrigerants () | R134aR22R404AR407AR407CR407FR410AR448AR449AR450AR452AR507AR513A |
| Max. test pressure [psig] () | 940 psig |
| Max. Working Pressure [bar] () | 45 bar |
| Quantity per packing format () | 2 pc |
| Max. Working Pressure [psig] () | 650 psig |
| Temperature range [°C] [max] () | 121 °C |
| Temperature range [°C] [min] () | -40 °C |
| Temperature range [°F] [max] () | 250 °F |
| Temperature range [°F] [min] () | -40 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
Shut-off ball valve, GBC 54s
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Inlet size [mm]: 54.00, Outlet size [mm]: 54.00, Inlet size [in]: 2 1/8 in, Outlet size [in]: 2 1/8 in
