009G0262

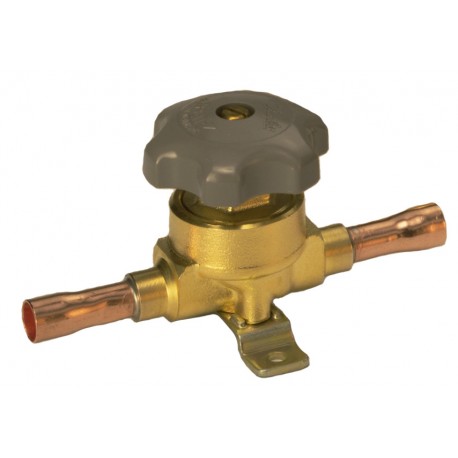

009G0262 DANFOSS REFRIGERATION Shut-off diaphragm valve
$0.00USD
3379 in stock
Key Specifications
EAN ():5702422046585
Type ():BML 15s
Volume ():1.615 Liter
Approval ():C UL US LISTEDEACLLC CDC TYSK
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702422046585 |
| Type () | BML 15s |
| Volume () | 1.615 Liter |
| Approval () | C UL US LISTEDEACLLC CDC TYSK |
| Direction () | Straightway |
| Equipment () | Handwheel |
| Net weight () | 0.815 Kg |
| Fluid Group () | 12 |
| Serviceable () | BM/GBC valve spare parts |
| Gross weight () | 0.816 Kg |
| PED category () | Art. 4, par. 3 |
| Refrigerants () | R1234yfR1270R134aR22/R407CR290R450AR513AR600R600aR407HR449BR515BR516AR1234ze(E)R404A/R507A |
| Body material () | Brass |
| Product group () | Shut-off and regulating valves |
| Packing format () | Multi pack |
| Inlet size [in] () | 5/8 in |
| Inlet size [mm] () | 16 mm |
| Kv value [m³/h] () | 2.2 m³/h |
| Outlet size [in] () | 5/8 in |
| Outlet size [mm] () | 16 mm |
| SCIP dossier no. () | 39a55314-7dd3-4133-963f-63cfcc6269ba |
| Cv value [gal/min] () | 2.54 gal/min |
| EU RoHS compliance () | Yes with exemptions |
| Connection material () | Copper |
| Product accessories () | BM/GBC valve accessories |
| Inlet connection type () | Solder extended ends, ODF |
| Oil free refrigerants () | R1234ze(E)R134aR513AR515BR516A |
| UL approval file name () | REFRIGERANT VALVE 53R0 |
| Outlet connection type () | Solder extended ends, ODF |
| Flow direction indicator () | Embossed 1-way arrow |
| Lubricants compatibility () | Oilfree applications |
| Max. test pressure [bar] () | 36.4 bar |
| Product Name Description () | Shut-off diaphragm valve |
| UL approved refrigerants () | R134aR22R404AR407CR407HR449BR450AR507AR513AR515BR516A |
| Max. test pressure [psig] () | 528 psig |
| Working range [bar] [max] () | 21 bar |
| Working range [bar] [min] () | -1 bar |
| Ignition source assessment () | Yes |
| Working range [psig] [max] () | 304 psig |
| Working range [psig] [min] () | -14 psig |
| Max. Working Pressure [bar] () | 28 bar |
| Quantity per packing format () | 12 pc |
| Max. Working Pressure [psig] () | 406 psig |
| Temperature range [°C] [max] () | 100 °C |
| Temperature range [°C] [min] () | -55 °C |
| Temperature range [°F] [max] () | 212 °F |
| Temperature range [°F] [min] () | -67 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
BML 15s Shut Off Valve M/12
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Inlet connection type: Solder extended ends, ODF, Outlet connection type: Solder extended ends, ODF, Inlet size [mm]: 16.00, Outlet size [mm]: 16.00, Inlet size [in]: 5/8 in, Outlet size [in]: 5/8 in
