In Stock Hot Product
006-1163

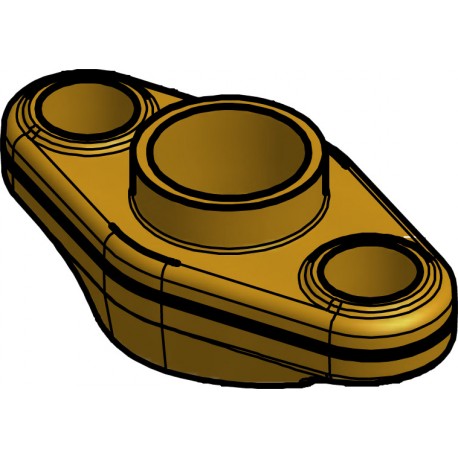

006-1163 DANFOSS REFRIGERATION Flange 5/8 in Soldering
$0.00USD
3702 in stock
Key Specifications
EAN ():5702422100089
Type ():Flange
Volume ():0.82 Liter
Net weight ():0.252 Kg
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702422100089 |
| Type () | Flange |
| Volume () | 0.82 Liter |
| Net weight () | 0.252 Kg |
| Flange form () | Oval |
| Gross weight () | 0.298 Kg |
| Flange design () | Groove |
| Product group () | Flanges |
| Flange version () | 1.0 |
| Material Spec. () | Brass |
| Packing format () | Single pack |
| Parts included () | 1 flange1 gasket |
| Connection type () | Soldering |
| Used for product () | CVKCVMEVR 15TE 12TEA 20TEAT 20TEVA 20EVRA 10EVRA 15EVRA 3NRVA 15NRVA 20 |
| Connection standard () | ASME B 16.22 |
| Connection size [in] () | 5/8 in |
| Connection size [mm] () | 16 mm |
| Product Name Description () | Flange set |
| Quantity per packing format () | 1 pc |
| REACH Candidate List substances () | No |
| In scope of WEEE and contain batteries () | No |
Product Description
Flange set, Flange, 16 mm, Soldering
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Connection standard: ASME B 16.22, Material Spec.: Brass, Used for product: EVRA 15; CVM; NRVA 15; EVR 15; TEA 20; TEVA 20; TE 12; NRVA 20; CVK; TEAT 20; EVRA 10; EVRA 3
