In Stock Hot Product
006-0053

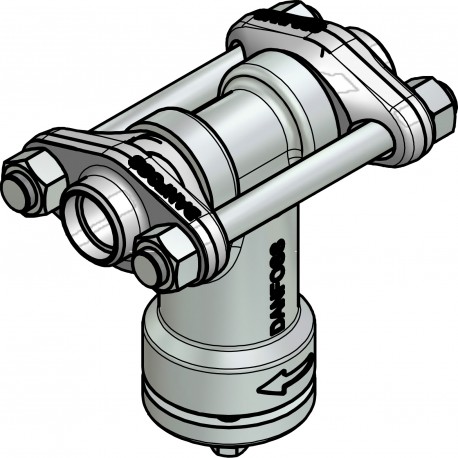

006-0053 DANFOSS REFRIGERATION Strainer, non welded
$0.00USD
3130 in stock
Key Specifications
EAN ():5702422002116
Type ():FA 15
Volume ():2.24 Liter
Net weight ():1.697 Kg
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702422002116 |
| Type () | FA 15 |
| Volume () | 2.24 Liter |
| Net weight () | 1.697 Kg |
| Fluid Group () | 1 |
| Gross weight () | 1.78 Kg |
| PED category () | Art. 3, par. 3 |
| Refrigerants () | R22R113R114R1233zd(E)R1234yfR1234ze(E)R125R1336mzz(Z)R134aR152aR227eaR23R236faR32R401AR402AR402BR404AR407AR407BR407CR407FR407HR408AR409AR410AR413AR417AR421AR422AR422BR422DR427AR438AR444BR447AR448AR449AR449BR450AR452AR452BR454AR454BR454CR455AR502R503R507AR513AR717 |
| Product group () | Strainers |
| Packing format () | Multi pack |
| Parts included () | BoltsGasketsScrewsFlanges |
| Staybolts size () | M12 x 127 |
| Connection type () | Butt weld |
| Kv value [m³/h] () | 3.5 m³/h |
| Cv value [gal/min] () | 4 gal/min |
| EU RoHS compliance () | Yes with exemptions |
| Connection material () | Steel |
| Connection standard () | EN 10220 |
| Product description () | Strainer |
| Strainer area [cm2] () | 40 cm² |
| Strainer area [in2] () | 6.2 in² |
| Connection size [in] () | 3/4 in |
| Connection size [mm] () | 20 mm |
| Weave fineness [µm] () | 150 µm |
| Strainer volume [cm3] () | 68 cm³ |
| Strainer volume [in3] () | 4.15 in³ |
| Weave fineness [Mesh] () | 100 Mesh |
| Max. test pressure [bar] () | 42 bar |
| Product Name Description () | Strainer, non welded |
| Max. test pressure [psig] () | 609 psig |
| Used for product comments () | Fitting in pipelines |
| Max. Working Pressure [bar] () | 28 bar |
| Quantity per packing format () | 10 pc |
| Max. Working Pressure [psig] () | 406 psig |
| Temperature range [°C] [max] () | 140 °C |
| Temperature range [°C] [min] () | -50 °C |
| Temperature range [°F] [max] () | 284 °F |
| Temperature range [°F] [min] () | -58 °F |
| REACH Candidate List substances () | No |
| In scope of WEEE and contain batteries () | No |
Product Description
FA 15 STRAINER CONN: 3/4" WELD FLANG
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Connection material: Steel, Weave fineness [µm]: 150, Max. Working Pressure [bar]: 28.0
