004H7592

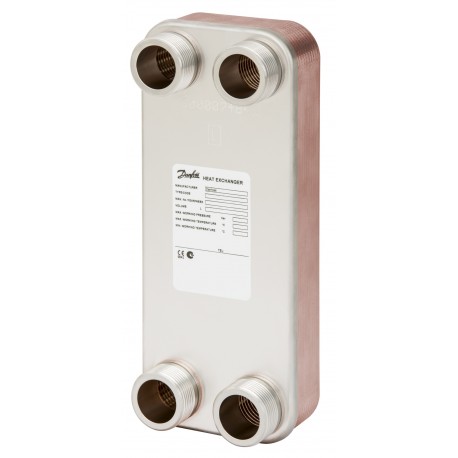

004H7592 DANFOSS HEATING XB12M-2-60/60 2 25 G 2G5/4
$0.00USD
3871 in stock
Key Specifications
EAN ():5702425109249
Type ():XB12M-2
Volume ():10.335 Liter
Approval ():PED
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702425109249 |
| Type () | XB12M-2 |
| Volume () | 10.335 Liter |
| Approval () | PED |
| Net weight () | 10.6 Kilogram |
| Fluid Group () | 2 |
| Gross weight () | 11.201 Kilogram |
| PED category () | Art. 4, par. 3 |
| Plate pattern () | M |
| Product group () | Heat exchangers |
| Packing format () | Single pack |
| Brazing material () | Copper |
| In scope of WEEE () | No |
| Number of passes () | 2 |
| Number of plates () | 120 |
| Total width [mm] () | 118 mm |
| Connection size 1 () | 5/4 |
| Connection size 2 () | 5/4 |
| Connection type 1 () | G |
| Connection type 2 () | G |
| EU RoHS compliance () | Yes |
| Plate material no. () | 1.4404 |
| UK RoHS compliance () | Yes |
| Connection standard () | ISO 228/1 |
| Manufacturer's name () | Danfoss |
| China RoHS compliance () | Yes |
| Connection length 1 [mm] () | 25 mm |
| Connection length 2 [mm] () | 25 mm |
| EU RoHS exemption clause () | No |
| Product Name Description () | Micro Plate heat exchanger |
| UK RoHS exemption clause () | No |
| Volume per channel 1 [l] () | 0.035 L |
| Volume per channel 2 [l] () | 0.035 L |
| Quantity per packing format () | 1 pc |
| Max working pressure 1 [bar] () | 25 bar |
| Max working pressure 2 [bar] () | 25 bar |
| Connection length side 1 [mm] () | 25 mm |
| Connection length side 2 [mm] () | 25 mm |
| Temperature range [°C] [max] () | 180 °C |
| Temperature range [°C] [min] () | -196 °C |
| Horizontal center porthole[mm] () | 63 mm |
| Material Description (Short Te () | XB12M-2-60/60_2Cu_25_S21_7G5/4 |
| Total height without feet [mm] () | 289 mm |
| Vertical center porthole 1[mm] () | 234 mm |
| Vertical center porthole 2[mm] () | 234 mm |
| REACH Candidate List substances () | No |
| Vertical center porthole side 1 [mm] () | 234 mm |
| In scope of WEEE and contain batteries () | No |
Product Description
Micro Plate heat exchanger, XB12M-2, Number of plates: 120
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
25 bar, Brazing material: Copper
