In Stock Hot Product
003Z8563

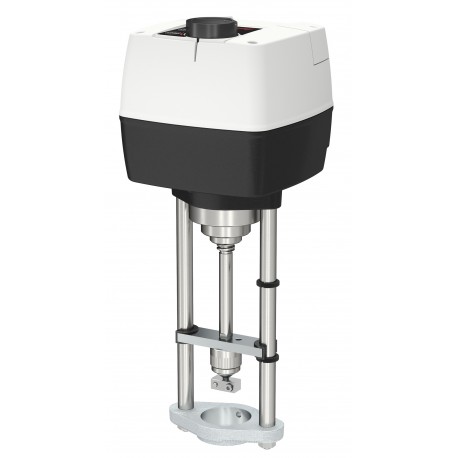

003Z8563 DANFOSS HEATING NovoCon XL
$0.00USD
4796 in stock
Key Specifications
EAN ():5714279426243
Type ():NovoCon XL
Volume ():26.565 Liter
Net weight ():6.3 Kilogram
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5714279426243 |
| Type () | NovoCon XL |
| Volume () | 26.565 Liter |
| Net weight () | 6.3 Kilogram |
| Description () | NovoCon XL, Digital actuator for AB-QM DN 200-250 |
| Stroke [mm] () | 80 mm |
| Gross weight () | 8.833 Kilogram |
| Product group () | Gear actuators |
| Cable included () | No |
| SCIP dossier no. () | 7f4cdd74-39d1-48dc-a3f5-2b8f7218fe43 |
| EU RoHS compliance () | Yes with exemptions |
| UK RoHS compliance () | Out of scope |
| Control signal type () | 0-10 VDC, 0-5 VDC, 2-10 VDC, 5-10 VDC, 2-6 VDC, 6-10 VDC, 0-20 mA, 4-20 mA, BACnet MS/TP, Modbus RTU |
| IP protection class () | IP54 |
| China RoHS compliance () | Out of scope |
| Supply voltage [V] AC () | 24 V |
| Supply voltage [V] DC () | 24 V |
| Control characteristic () | Linear / Equal percentage |
| EU RoHS exemption clause () | 6(c) |
| SCIP dossier product name () | NovoCon XL |
| Compatibility with AB-QM size () | DN 200-250 |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
NovoCon XL, DN 200-250
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
NovoCon XL, Digital actuator for AB-QM DN 200-250
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
