003Z8562

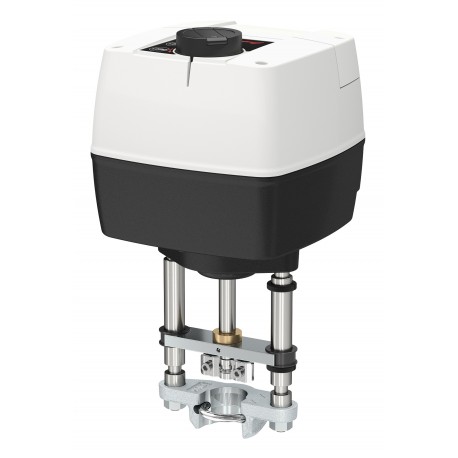

003Z8562 DANFOSS HEATING NovoCon L SD
$0.00USD
3410 in stock
Key Specifications
EAN ():5714279426069
Type ():NovoCon L
Volume ():18.081 Liter
Net weight ():9.598 Kilogram
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5714279426069 |
| Type () | NovoCon L |
| Volume () | 18.081 Liter |
| Net weight () | 9.598 Kilogram |
| Description () | NovoCon L, Digital actuator for AB-QM DN 125-150, with spring down safety function |
| Stroke [mm] () | 50 mm |
| Gross weight () | 9.6 Kilogram |
| Product group () | Gear actuators |
| Cable included () | No |
| Safety function () | Spring down |
| EU RoHS compliance () | Yes with exemptions |
| UK RoHS compliance () | Out of scope |
| Control signal type () | 0-10 VDC, 0-5 VDC, 2-10 VDC, 5-10 VDC, 2-6 VDC, 6-10 VDC, 0-20 mA, 4-20 mA, BACnet MS/TP, Modbus RTU |
| IP protection class () | IP54 |
| China RoHS compliance () | Out of scope |
| Supply voltage [V] AC () | 24 V |
| Supply voltage [V] DC () | 24 V |
| Control characteristic () | Linear / Equal percentage |
| EU RoHS exemption clause () | 6(c) |
| Compatibility with AB-QM size () | DN 125-150 |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
NovoCon L, DN 125-150, Spring down
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
NovoCon L, Digital actuator for AB-QM DN 125-150, with spring down safety function
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
