003Z8560

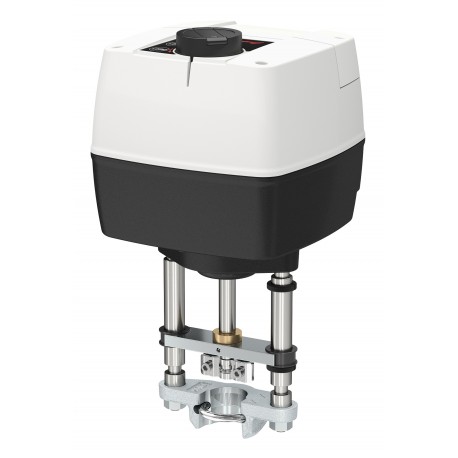

003Z8560 DANFOSS HEATING NovoCon L
$0.00USD
4465 in stock
Key Specifications
EAN ():5714279426090
Type ():NovoCon L
Volume ():17.85 Liter
Net weight ():5.4 Kg
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5714279426090 |
| Type () | NovoCon L |
| Volume () | 17.85 Liter |
| Net weight () | 5.4 Kg |
| Description () | NovoCon L, Digital actuator for AB-QM DN 125-150 |
| Stroke [mm] () | 50 mm |
| Gross weight () | 6.241 Kg |
| Product group () | Gear actuators |
| Cable included () | No |
| Safety function () | No |
| Control signal type () | 0-10 VDC, 0-5 VDC, 2-10 VDC, 5-10 VDC, 2-6 VDC, 6-10 VDC, 0-20 mA, 4-20 mA, BACnet MS/TP, Modbus RTU |
| IP protection class () | IP 54 |
| Supply voltage [V] AC () | 24 V |
| Supply voltage [V] DC () | 24 V |
| Control characteristic () | Linear / Equal percentage |
| Compatibility with AB-QM size () | DN 125-150 |
| In scope of WEEE and contain batteries () | No |
Product Description
NovoCon L, DN 125-150, No
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
NovoCon L, Digital actuator for AB-QM DN 125-150
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
