003Z8306

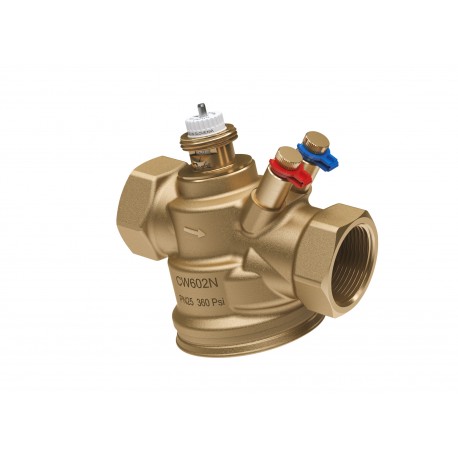

003Z8306 DANFOSS HEATING AB-QM DN 25 HF with TP, Int.
$0.00USD
3230 in stock
Key Specifications
EAN ():5715162444283
Type ():AB-QM
Volume ():2.45 Liter
Version ():AB-QM 4.0
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5715162444283 |
| Type () | AB-QM |
| Volume () | 2.45 Liter |
| Version () | AB-QM 4.0 |
| Flow type () | High flow |
| Net weight () | 1.12 Kilogram |
| Test plugs () | With test plugs |
| Valve size () | DN 25 |
| Description () | AB-QM, DN 25 HF, with test plugs, internal thread, PN25, pressure independent balancing and control valve |
| Stroke [mm] () | 4 mm |
| Gross weight () | 1.238 Kilogram |
| Product group () | Pressure independent balancing and control valves |
| Pressure class () | PN 25 |
| Connection types () | Internal thread |
| SCIP dossier no. () | 01a655ad-7758-4b22-9712-36bb4e724f6a |
| EU RoHS compliance () | Yes with exemptions |
| UK RoHS compliance () | Out of scope |
| Actuator connection () | M30 x 1.5 |
| Valve body material () | DZR Brass (CW 602N) |
| Flow nominal [m³/h] () | 3.8 m³/h |
| China RoHS compliance () | Out of scope |
| Starting pressure [kPa] () | 30 KPa |
| EU RoHS exemption clause () | 6(c) |
| SCIP dossier product name () | AB QM DN25 |
| Media temperature [°C] [Max] () | 95 °C |
| Media temperature [°C] [Min] () | -10 °C |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Differential pressure [kPa] [Max] () | 600 KPa |
| Differential pressure [kPa] [Min] () | 30 KPa |
| In scope of WEEE and contain batteries () | No |
Product Description
AB-QM, DN 25, High flow, With test plugs, Internal thread
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
AB-QM, DN 25 HF, with test plugs, internal thread, PN25, pressure independent balancing and control valve
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
