003Z5605

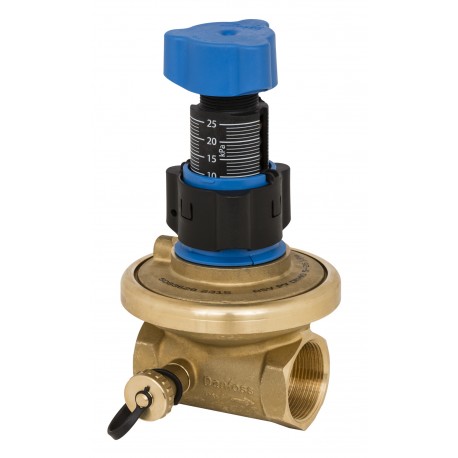

003Z5605 DANFOSS HEATING ASV-PV DN40 5-25 kPa
$0.00USD
4955 in stock
Key Specifications
EAN ():5710104081649
Type ():ASV-PV 4G
Volume ():9.239 Liter
Insulation ():With insulation
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5710104081649 |
| Type () | ASV-PV 4G |
| Volume () | 9.239 Liter |
| Insulation () | With insulation |
| Net weight () | 3.357 Kilogram |
| Valve size () | DN 40 |
| Description () | ASV-PV DN 40, 5-25 kPa, internal thread, with insulation, automatic balancing valve |
| Gross weight () | 3.653 Kilogram |
| Product group () | Automatic balancing |
| Pressure class () | PN 16 |
| Connection types () | Internal thread |
| SCIP dossier no. () | 4f955b0e-1f38-4945-8238-1c1c60373eeb |
| Mounting position () | Return pipe |
| Shut-off function () | Yes |
| EU RoHS compliance () | Yes with exemptions |
| Kvs values [m³/h] () | 10 m³/h |
| UK RoHS compliance () | Out of scope |
| Valve body material () | Brass |
| China RoHS compliance () | Out of scope |
| Factory setting [kPa] () | 10 KPa |
| Impulse tube length [m] () | 1.5 m |
| EU RoHS exemption clause () | 6(c) |
| SCIP dossier product name () | "ASV-PV DN 15 - 50" |
| Media temperature [°C] [Max] () | 120 °C |
| Media temperature [°C] [Min] () | 0 °C |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
| Differential pressure setting [kPa] [Max] () | 25 KPa |
| Differential pressure setting [kPa] [Min] () | 5 KPa |
| Differential pressure over the valve [kPa] [Max] () | 250 KPa |
Product Description
ASV-PV 4G, DN 40, 5 KPa - 25 KPa, Internal thread, With insulation
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
ASV-PV DN 40, 5-25 kPa, internal thread, with insulation, automatic balancing valve
