003Z5543

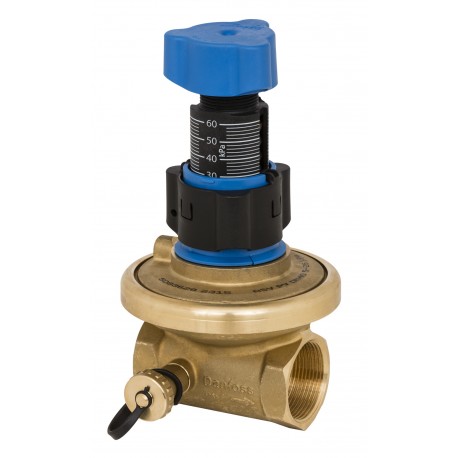

003Z5543 DANFOSS HEATING ASV-PV DN25 20-60 kPa Int.Thr. w.o.Insul
$0.00USD
4393 in stock
Key Specifications
EAN ():5710104086248
Type ():ASV-PV 4G
Volume ():3.475 Liter
Insulation ():Without insulation
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5710104086248 |
| Type () | ASV-PV 4G |
| Volume () | 3.475 Liter |
| Insulation () | Without insulation |
| Net weight () | 1.093 Kilogram |
| Valve size () | DN 25 |
| Description () | ASV-PV DN 25, 20-60 kPa, Internal thread, without insulation, automatic balancing valve |
| Gross weight () | 1.416 Kilogram |
| Product group () | Automatic balancing |
| Pressure class () | PN 16 |
| Connection types () | Internal thread |
| SCIP dossier no. () | 4f955b0e-1f38-4945-8238-1c1c60373eeb |
| Mounting position () | Return pipe |
| Shut-off function () | Yes |
| EU RoHS compliance () | Yes with exemptions |
| Kvs values [m³/h] () | 4 m³/h |
| UK RoHS compliance () | Out of scope |
| Valve body material () | Brass |
| China RoHS compliance () | Out of scope |
| Factory setting [kPa] () | 30 KPa |
| Impulse tube length [m] () | 1.5 m |
| EU RoHS exemption clause () | 6(c) |
| SCIP dossier product name () | "ASV-PV DN 15 - 50" |
| Media temperature [°C] [Max] () | 120 °C |
| Media temperature [°C] [Min] () | 0 °C |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
| Differential pressure setting [kPa] [Max] () | 60 KPa |
| Differential pressure setting [kPa] [Min] () | 20 KPa |
| Differential pressure over the valve [kPa] [Max] () | 250 KPa |
Product Description
ASV-PV 4G, DN 25, 20 KPa - 60 KPa, Internal thread, Without insulation
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
ASV-PV DN 25, 20-60 kPa, Internal thread, without insulation, automatic balancing valve
