003Z4042

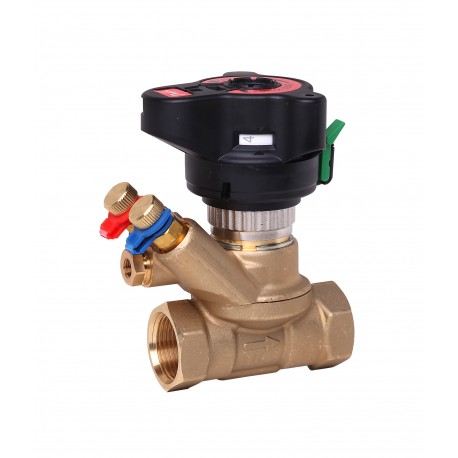

003Z4042 DANFOSS HEATING ASV-BD DN20
$0.00USD
4100 in stock
Key Specifications
EAN ():5702420114644
Type ():ASV-BD
Volume ():2.235 Liter
Net weight ():0.876 Kilogram
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702420114644 |
| Type () | ASV-BD |
| Volume () | 2.235 Liter |
| Net weight () | 0.876 Kilogram |
| Valve size () | DN 20 |
| Description () | ASV-BD DN 20, Internal thread, shut-off valve |
| Gross weight () | 0.88 Kilogram |
| Product group () | Automatic balancing |
| Setting scale () | Yes |
| Drain function () | Optional via accessory |
| Pressure class () | PN 20 |
| Flow limitation () | Yes |
| Connection types () | Internal thread |
| SCIP dossier no. () | 714d857a-c2dc-49c1-8985-18c8bb0d1890 |
| Mounting position () | Supply pipe |
| Shut-off function () | Yes |
| EU RoHS compliance () | Yes with exemptions |
| Kvs values [m³/h] () | 6 m³/h |
| UK RoHS compliance () | Out of scope |
| Valve body material () | DZR brass |
| China RoHS compliance () | Out of scope |
| EU RoHS exemption clause () | 6(c) |
| SCIP dossier product name () | "ASV-BD" |
| Media temperature [°C] [Max] () | 120 °C |
| Media temperature [°C] [Min] () | -20 °C |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
| Differential pressure over the valve [kPa] [Min] () | 10 KPa |
Product Description
ASV-BD, DN 20, Internal thread
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
ASV-BD DN 20, Internal thread, shut-off valve
