In Stock Hot Product
003Z4021

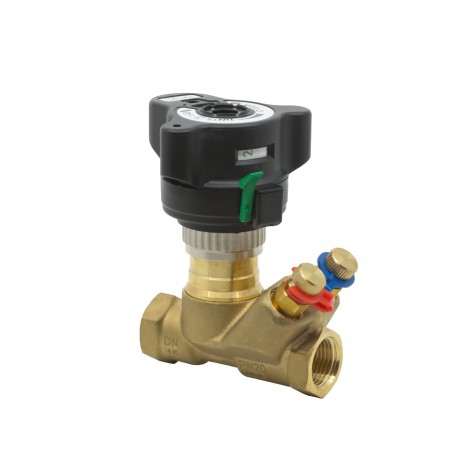

003Z4021 DANFOSS HEATING MSV-O DN15 G½" int.
$0.00USD
3318 in stock
Key Specifications
EAN ():5702420096643
Type ():LENO MSV-O
Volume ():1.36 Liter
Net weight ():0.727 Kilogram
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702420096643 |
| Type () | LENO MSV-O |
| Volume () | 1.36 Liter |
| Net weight () | 0.727 Kilogram |
| Test plugs () | With test plugs |
| Valve size () | DN 15 |
| Connections () | Rp ½ |
| Description () | MSV-O DN 15, Internal thread, fixed venturi orifice, manual balancing valve |
| Gross weight () | 0.791 Kilogram |
| Product group () | Manual balancing |
| Setting scale () | Yes |
| Drain function () | No |
| Pressure class () | PN 20 |
| Connection types () | Internal thread |
| SCIP dossier no. () | 53f95648-cebd-47cc-b3d7-13f198654fa0 |
| Shut-off function () | Yes |
| EU RoHS compliance () | Yes with exemptions |
| UK RoHS compliance () | Out of scope |
| Valve body material () | DZR brass |
| China RoHS compliance () | Out of scope |
| EU RoHS exemption clause () | 6(c) |
| SCIP dossier product name () | MSV-O DN15-DN50 |
| Media temperature [°C] [Max] () | 120 °C |
| Media temperature [°C] [Min] () | -20 °C |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
| Differential pressure range [bar] [Max] () | 2.5 bar |
Product Description
LENO MSV-O, DN 15, Internal thread
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
MSV-O DN 15, Internal thread, fixed venturi orifice, manual balancing valve
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
