In Stock Hot Product
003Z4006

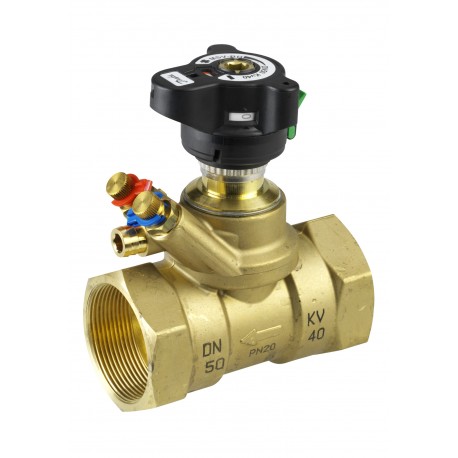

003Z4006 DANFOSS HEATING MSV BD DN50 G2 int
$0.00USD
3354 in stock
Key Specifications
EAN ():5702420084107
Type ():LENO MSV-BD
Volume ():3.321 Liter
Net weight ():2.6 Kg
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702420084107 |
| Type () | LENO MSV-BD |
| Volume () | 3.321 Liter |
| Net weight () | 2.6 Kg |
| Test plugs () | With test plugs |
| Valve size () | DN 50 |
| Connections () | Rp 2 |
| Description () | MSV-BD DN 50, Internal thread, manual balancing valve |
| Gross weight () | 2.612 Kg |
| Product group () | Manual balancing |
| Setting scale () | Yes |
| Drain function () | Yes |
| Pressure class () | PN 20 |
| Connection types () | Internal thread |
| SCIP dossier no. () | d3bbd2ff-8ad7-4cf6-81e8-999b1f153c41 |
| Shut-off function () | Yes |
| EU RoHS compliance () | Yes with exemptions |
| Kvs values [m³/h] () | 40 m³/h |
| Valve body material () | DZR brass |
| SCIP dossier product name () | MSV-BD DN15-DN50 (2) |
| Media temperature [°C] [Max] () | 120 °C |
| Media temperature [°C] [Min] () | -20 °C |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
| Differential pressure range [bar] [Max] () | 2.5 bar |
Product Description
LENO MSV-BD, DN 50, Internal thread
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
MSV-BD DN 50, Internal thread, manual balancing valve
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
