003Z3150

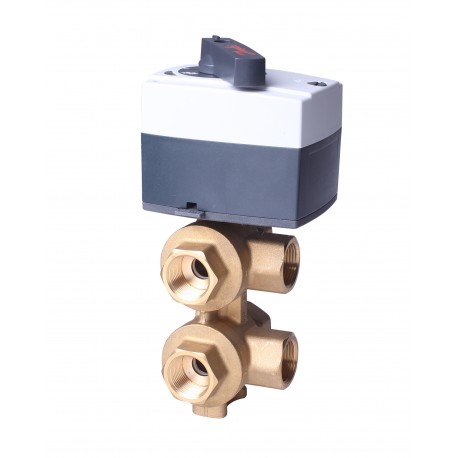

003Z3150 DANFOSS HEATING ChangeOver valve DN15
$0.00USD
4469 in stock
Key Specifications
EAN ():5702428926140
Type ():ChangeOver6 valve
Volume ():0.819 Liter
Net weight ():1.15 Kilogram
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702428926140 |
| Type () | ChangeOver6 valve |
| Volume () | 0.819 Liter |
| Net weight () | 1.15 Kilogram |
| Description () | ChangeOver6 DN 15, motorized 6-port ball valve |
| Gross weight () | 1.166 Kilogram |
| Label product () | Yes |
| Product group () | Other valves |
| For valve size () | DN15 |
| Pressure class () | PN 16 |
| Connection types () | Internal thread |
| SCIP dossier no. () | d1cc861f-3685-4955-b9ef-2f9cb2c117ec |
| Shut-off function () | Yes |
| EU RoHS compliance () | Yes with exemptions |
| Kvs values [m³/h] () | 2.4 m³/h |
| UK RoHS compliance () | Out of scope |
| Actuator connection () | Quick fix connection |
| Valve body material () | DZR Brass (CW 602N) |
| China RoHS compliance () | Out of scope |
| EU RoHS exemption clause () | 6(c) |
| SCIP dossier product name () | 003Z3150 |
| Media temperature [°C] [Max] () | 90 °C |
| Media temperature [°C] [Min] () | 0 °C |
| Shut off pressure [kPa] [Max] () | 800 KPa |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
ChangeOver6 DN 15, motorized 6-port ball valve
