In Stock Hot Product
003Z2130

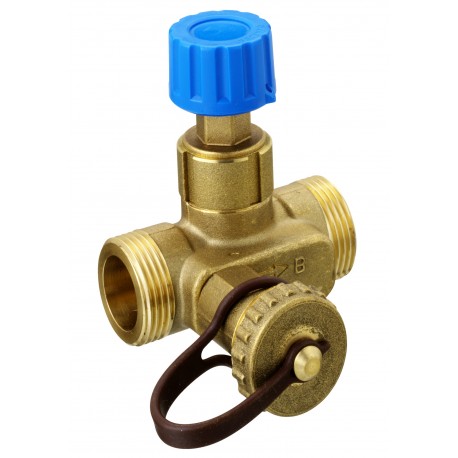

003Z2130 DANFOSS HEATING USV-M 40, G 1 3/4 A, PN16
$0.00USD
3408 in stock
Key Specifications
EAN ():5702420083551
Type ():USV-M
Volume ():2.055 Liter
Net weight ():1.61 Kilogram
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702420083551 |
| Type () | USV-M |
| Volume () | 2.055 Liter |
| Net weight () | 1.61 Kilogram |
| Valve size () | DN 40 |
| Description () | USV-M DN 40, external thread, upgradable balancing valve |
| Gross weight () | 1.61 Kilogram |
| Product group () | Manual balancing |
| Setting scale () | No |
| Drain function () | Yes |
| Pressure class () | PN 16 |
| Upgradeability () | Yes |
| Flow limitation () | Yes |
| Connection types () | External Thread |
| Shut-off function () | Yes |
| Kvs values [m³/h] () | 10 m³/h |
| UK RoHS compliance () | Out of scope |
| Valve body material () | Brass |
| China RoHS compliance () | Out of scope |
| Media temperature [°C] [Max] () | 120 °C |
| Media temperature [°C] [Min] () | -20 °C |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
| Differential pressure over the valve [kPa] [Max] () | 80 KPa |
Product Description
USV-M, DN 40, External Thread
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
USV-M DN 40, external thread, upgradable balancing valve
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
