003Z1770

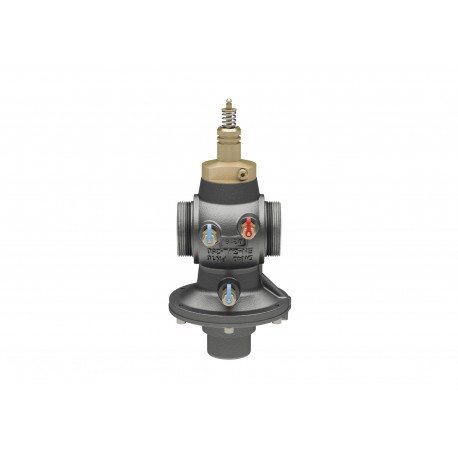

003Z1770 DANFOSS HEATING AB-QM NovoCon DN40 PN16
$0.00USD
3857 in stock
Key Specifications
EAN ():5714279003758
Type ():AB-QM
Volume ():18.228 Liter
Version ():AB-QM NovoCon
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5714279003758 |
| Type () | AB-QM |
| Volume () | 18.228 Liter |
| Version () | AB-QM NovoCon |
| Net weight () | 6.834 Kilogram |
| Test plugs () | With test plugs |
| Valve size () | DN 40 |
| Description () | AB-QM NovoCon DN 40, with three test plugs, pressure independent balancing and control valve, to be used with NovoCon M |
| Stroke [mm] () | 10 mm |
| Gross weight () | 6.984 Kilogram |
| EPD available () | Yes |
| Product group () | Pressure independent balancing and control valves |
| Pressure class () | PN 16 |
| Connection types () | External Thread |
| SCIP dossier no. () | 895c13d2-aa37-49e5-a525-eb197599d612 |
| EU RoHS compliance () | Yes with exemptions |
| Actuator connection () | Danfoss standard |
| Valve body material () | Grey cast iron EN-GJL-250 (GG-25) |
| Flow nominal [m³/h] () | 7.5 m³/h |
| Starting pressure [kPa] () | 30 KPa |
| EU RoHS exemption clause () | 6(c) |
| SCIP dossier product name () | AB-QM DN40 DN50 |
| Media temperature [°C] [Max] () | 120 °C |
| Media temperature [°C] [Min] () | -10 °C |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Differential pressure [kPa] [Max] () | 600 KPa |
| In scope of WEEE and contain batteries () | No |
Product Description
AB-QM, DN 40, With test plugs, External Thread
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
AB-QM NovoCon DN 40, with three test plugs, pressure independent balancing and control valve, to be used with NovoCon M
