In Stock Hot Product
003Z1557

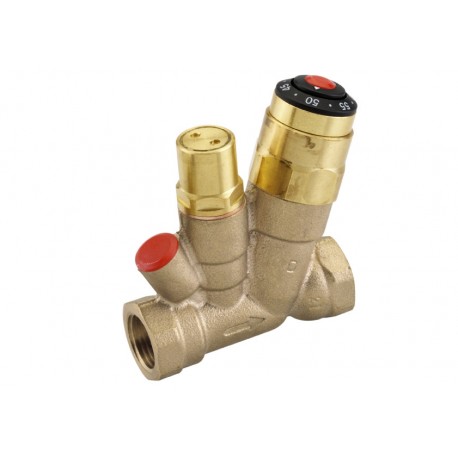

003Z1557 DANFOSS HEATING MTCV B VERSION DN20
$0.00USD
3650 in stock
Key Specifications
EAN ():5710104067858
Type ():MTCV
Volume ():0.504 Liter
Version ():B
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5710104067858 |
| Type () | MTCV |
| Volume () | 0.504 Liter |
| Version () | B |
| Net weight () | 0.676 Kilogram |
| Valve size () | DN 20 |
| Description () | MTCV DN 20, B version, multifunctional thermostatic circulation valve |
| Gross weight () | 0.676 Kilogram |
| Product group () | Hot water balancing |
| Pressure class () | PN 10 |
| Connection types () | Internal thread |
| EU RoHS compliance () | Out of scope |
| Kvs values [m³/h] () | 1.8 m³/h |
| UK RoHS compliance () | Out of scope |
| Valve body material () | Rg5 |
| China RoHS compliance () | Out of scope |
| Disinfection function () | Yes |
| Factory setting [°C] () | 50 °C |
| Media temperature [°C] [Max] () | 100 °C |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Temperature setting range [°C] [Max] () | 60 °C |
| Temperature setting range [°C] [Min] () | 35 °C |
| In scope of WEEE and contain batteries () | No |
| Differential pressure over the valve [kPa] [Max] () | 100 KPa |
Product Description
MTCV, Version: B, DN 20
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
MTCV DN 20, B version, multifunctional thermostatic circulation valve
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
