003Z1411

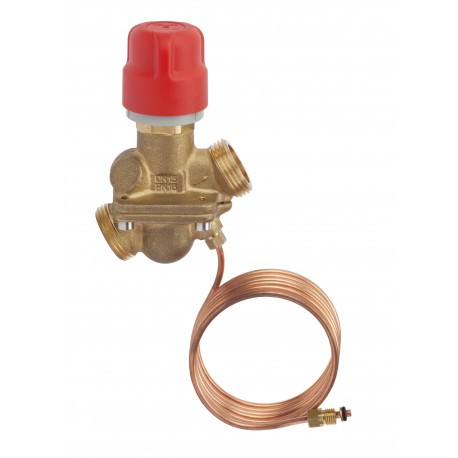

003Z1411 DANFOSS HEATING AB-PM DN10 HP without test plugs
$0.00USD
3581 in stock
Key Specifications
EAN ():5710104083704
Type ():AB-PM
Volume ():1.378 Liter
Net weight ():0.48 Kilogram
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5710104083704 |
| Type () | AB-PM |
| Volume () | 1.378 Liter |
| Net weight () | 0.48 Kilogram |
| Valve size () | DN 10 |
| Description () | AB-PM HP DN 10, without test plugs, combined automatic balancing valve |
| Gross weight () | 0.49 Kilogram |
| Product group () | Automatic balancing |
| Pressure class () | PN 16 |
| Connection types () | External Thread |
| Pressure version () | High pressure |
| SCIP dossier no. () | a38bff3b-5433-419c-92bc-48b229b7fb3b |
| Mounting position () | Supply pipe |
| EU RoHS compliance () | Yes with exemptions |
| UK RoHS compliance () | Out of scope |
| Actuator connection () | M30 x 1.5 |
| Valve body material () | DZR brass CuZn36Pb2AS (CW 602N) |
| China RoHS compliance () | Out of scope |
| Impulse tube length [m] () | 1.5 m |
| EU RoHS exemption clause () | 6(c) |
| SCIP dossier product name () | AB-PM DN10 HP without test plugs |
| Flow max at dp=10kpa [m3/h] () | 0.2 m³/h |
| Media temperature [°C] [Max] () | 120 °C |
| Media temperature [°C] [Min] () | -10 °C |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Differential pressure [kPa] [Max] () | 400 KPa |
| Differential pressure [kPa] [Min] () | 28 KPa |
| In scope of WEEE and contain batteries () | No |
Product Description
AB-PM, DN 10, High pressure, External Thread
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
AB-PM HP DN 10, without test plugs, combined automatic balancing valve
