003Z1251

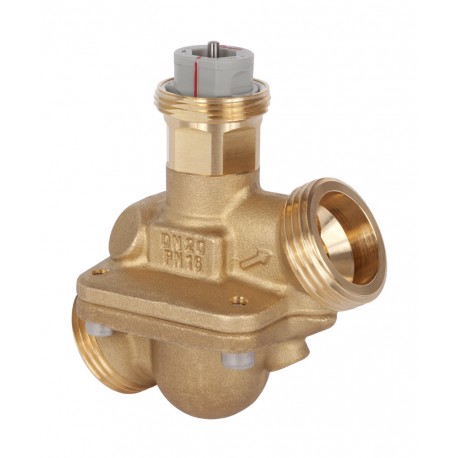

003Z1251 DANFOSS HEATING AB-QM DN10 Low F without measuring n.
$0.00USD
3356 in stock
Key Specifications
EAN ():5710104029986
Type ():AB-QM
Volume ():0.912 Liter
Version ():AB-QM 3.0
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5710104029986 |
| Type () | AB-QM |
| Volume () | 0.912 Liter |
| Version () | AB-QM 3.0 |
| Flow type () | Low flow |
| Net weight () | 0.35 Kilogram |
| Test plugs () | Without test plugs |
| Valve size () | DN 10 |
| Description () | AB-QM DN 10, Low flow, without test plugs, pressure independent balancing and control valve |
| Stroke [mm] () | 2.25 mm |
| Gross weight () | 0.36 Kilogram |
| Product group () | Pressure independent balancing and control valves |
| Pressure class () | PN 16 |
| Connection types () | External Thread |
| SCIP dossier no. () | 8650187b-c47a-48a1-b569-4d9612a0986b |
| EU RoHS compliance () | Yes with exemptions |
| UK RoHS compliance () | Out of scope |
| Actuator connection () | M30 x 1.5 |
| Valve body material () | DZR Brass (CW 602N) |
| Flow nominal [m³/h] () | 0.15 m³/h |
| China RoHS compliance () | Out of scope |
| Starting pressure [kPa] () | 16 KPa |
| EU RoHS exemption clause () | 6(c) |
| SCIP dossier product name () | AB-QM DN10-32 |
| Media temperature [°C] [Max] () | 120 °C |
| Media temperature [°C] [Min] () | -10 °C |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Differential pressure [kPa] [Max] () | 600 KPa |
| In scope of WEEE and contain batteries () | No |
Product Description
AB-QM, DN 10, Low flow, Without test plugs, External Thread
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
AB-QM DN 10, Low flow, without test plugs, pressure independent balancing and control valve
