In Stock Hot Product
003Z1120

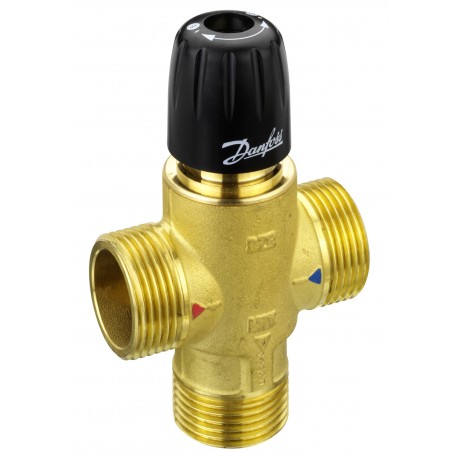

003Z1120 DANFOSS HEATING Mixing valve TVM-H DN20
$0.00USD
3723 in stock
Key Specifications
EAN ():5702421524695
Type ():TVM-H
Volume ():0.488 Liter
Net weight ():0.579 Kilogram
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702421524695 |
| Type () | TVM-H |
| Volume () | 0.488 Liter |
| Net weight () | 0.579 Kilogram |
| Valve size () | DN 20 |
| Description () | TVM-H DN 20, thermostatic mixing valve |
| Gross weight () | 0.608 Kilogram |
| Label product () | Yes |
| Product group () | Hot water balancing |
| Pressure class () | PN 10 |
| Connection types () | External Thread |
| SCIP dossier no. () | ff9b3c80-0d59-4769-9d4d-1d6a017826bf |
| EU RoHS compliance () | Yes with exemptions |
| UK RoHS compliance () | Out of scope |
| Valve body material () | DZR brass + antilimescale treatment |
| China RoHS compliance () | Out of scope |
| Factory setting [°C] () | 70 °C |
| SCIP dossier product name () | "003Z1120" |
| Integrated non-return valve () | No |
| Media temperature [°C] [Max] () | 100 °C |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Temperature setting range [°C] [Max] () | 70 °C |
| Temperature setting range [°C] [Min] () | 30 °C |
| In scope of WEEE and contain batteries () | No |
| Kvs value with non-return valve [m3/h] () | 1.65 m³/h |
| Differential pressure range [bar] [Max] () | 5 bar |
| Kvs value without non-return valve [m3/h] () | 1.9 m³/h |
Product Description
TVM-H, DN 20
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
TVM-H DN 20, thermostatic mixing valve
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
