003Z1075

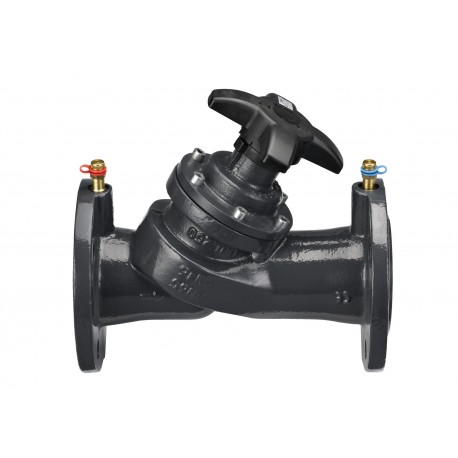

003Z1075 DANFOSS HEATING MSV-F2 DN150 w. measuring nipples (PN25)
$0.00USD
4376 in stock
Key Specifications
EAN ():5702421551523
Type ():MSV-F2
Volume ():101.061 Liter
Net weight ():55.5 Kilogram
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702421551523 |
| Type () | MSV-F2 |
| Volume () | 101.061 Liter |
| Net weight () | 55.5 Kilogram |
| Test plugs () | With test plugs |
| Valve size () | DN 150 |
| Description () | MSV-F2 DN 150 with test plugs PN25, manual balancing valve |
| Gross weight () | 55.5 Kilogram |
| Product group () | Manual balancing |
| Setting scale () | Yes |
| Drain function () | No |
| Pressure class () | PN 25 |
| Connection types () | Flange |
| SCIP dossier no. () | 084def3c-0736-47e7-8951-baf9c3d77dba |
| Shut-off function () | Yes |
| EU RoHS compliance () | Yes with exemptions |
| Kvs values [m³/h] () | 400.8 m³/h |
| UK RoHS compliance () | Out of scope |
| Valve body material () | Ductile iron (EN-GJS 400-15) |
| China RoHS compliance () | Out of scope |
| EU RoHS exemption clause () | 6(c) |
| SCIP dossier product name () | MSV-F2 DN65-DN150 |
| Media temperature [°C] [Max] () | 150 °C |
| Media temperature [°C] [Min] () | -10 °C |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
| Differential pressure over the valve [kPa] [Max] () | 200 KPa |
Product Description
MSV-F2, DN 150, PN 25, Flange
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
MSV-F2 DN 150 with test plugs PN25, manual balancing valve
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
