003Z0784

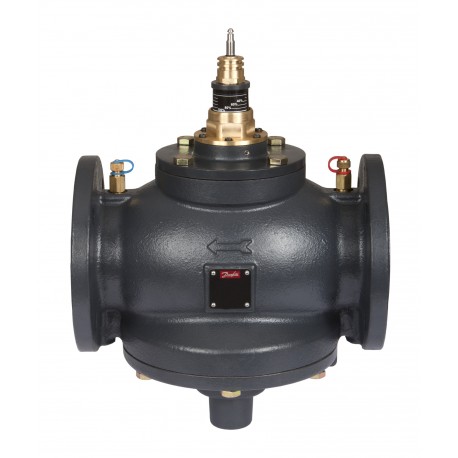

003Z0784 DANFOSS HEATING AB-QM ANSI 3" CLASS 125
$0.00USD
3412 in stock
Key Specifications
EAN ():5710104034218
Type ():AB-QM ANSI
Volume ():98.77 Liter
Net weight ():44 Kilogram
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5710104034218 |
| Type () | AB-QM ANSI |
| Volume () | 98.77 Liter |
| Net weight () | 44 Kilogram |
| Test plugs () | With test plugs |
| Valve size () | 3" |
| Description () | AB-QM 3", pressure independent balancing and control valve |
| Stroke [mm] () | 15 mm |
| Gross weight () | 49.1 Kilogram |
| Product group () | Pressure independent balancing and control valves |
| Connection types () | ANSI Flange |
| Flow [gpm] [Max] () | 120 gal/min |
| EU RoHS compliance () | Yes with exemptions |
| Actuator connection () | M30 x 1.5 |
| Valve body material () | Grey cast iron (A48 No. 35A) |
| Static pressure [psi] [Max] () | 300 psi |
| Media temperature [°F] [Max] () | 250 °F |
| Media temperature [°F] [Min] () | 15 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
| Differential pressure range [psi] [Max] () | 60 psi |
| Differential pressure range [psi] [Min] () | 4 psi |
Product Description
AB-QM ANSI, 3", With test plugs, ANSI Flange
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
AB-QM 3", pressure independent balancing and control valve
