003Z0707

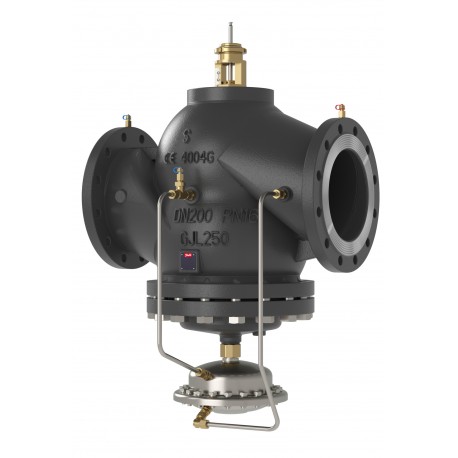

003Z0707 DANFOSS HEATING AB-QM DN 200 PN 16
$0.00USD
4674 in stock
Key Specifications
EAN ():5710104012902
Type ():AB-QM
Volume ():696 Liter
Version ():AB-QM
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5710104012902 |
| Type () | AB-QM |
| Volume () | 696 Liter |
| Version () | AB-QM |
| Net weight () | 244.8 Kilogram |
| Test plugs () | With test plugs |
| Valve size () | DN 200 |
| Description () | AB-QM DN 200, with three test plugs, pressure independent balancing and control valve |
| Stroke [mm] () | 30 mm |
| Gross weight () | 244.8 Kilogram |
| Product group () | Pressure independent balancing and control valves |
| Pressure class () | PN 16 |
| Connection types () | Flange |
| SCIP dossier no. () | 83a23ab2-e2d8-4a66-ab11-bdc5cc9d6f2c |
| EU RoHS compliance () | Yes with exemptions |
| UK RoHS compliance () | Out of scope |
| Actuator connection () | Danfoss standard |
| Valve body material () | Grey iron (EN-GJL-250) |
| Flow nominal [m³/h] () | 200 m³/h |
| China RoHS compliance () | Out of scope |
| Starting pressure [kPa] () | 45 KPa |
| EU RoHS exemption clause () | 6(c) |
| SCIP dossier product name () | AB-QM DN200 |
| Media temperature [°C] [Max] () | 120 °C |
| Media temperature [°C] [Min] () | -10 °C |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Differential pressure [kPa] [Max] () | 600 KPa |
| In scope of WEEE and contain batteries () | No |
Product Description
AB-QM, DN 200, With test plugs, Flange
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
AB-QM DN 200, with three test plugs, pressure independent balancing and control valve
