In Stock Hot Product
003Z0235

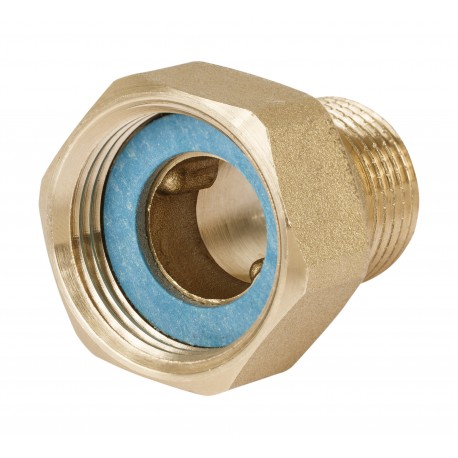

003Z0235 DANFOSS HEATING Tail piece with ext. thread DN32
$0.00USD
4608 in stock
Key Specifications
EAN ():5702421534861
Type ():AB-QM accessories
Usage ():AB-QM, ASV
Volume ():0.114 Liter
Supplier Information
DANFOSS HEATING
Products: 5013
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702421534861 |
| Type () | AB-QM accessories |
| Usage () | AB-QM, ASV |
| Volume () | 0.114 Liter |
| Net weight () | 0.225 Kilogram |
| Description () | Tailpiece with External thread DN 32 |
| Gross weight () | 0.23 Kilogram |
| Product group () | Pressure independent balancing and control valves |
| SCIP dossier no. () | b1c30c39-2a01-4a7e-aa0f-69a47ec00790 |
| Connection to pipe () | R 1 ΒΌ |
| EU RoHS compliance () | Yes with exemptions |
| Connection to valve () | DN 32 |
| SCIP dossier product name () | Tail pieces with thread |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| In scope of WEEE and contain batteries () | No |
Product Description
Tailpiece with External thread DN 32
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Tailpiece with External thread DN 32
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
